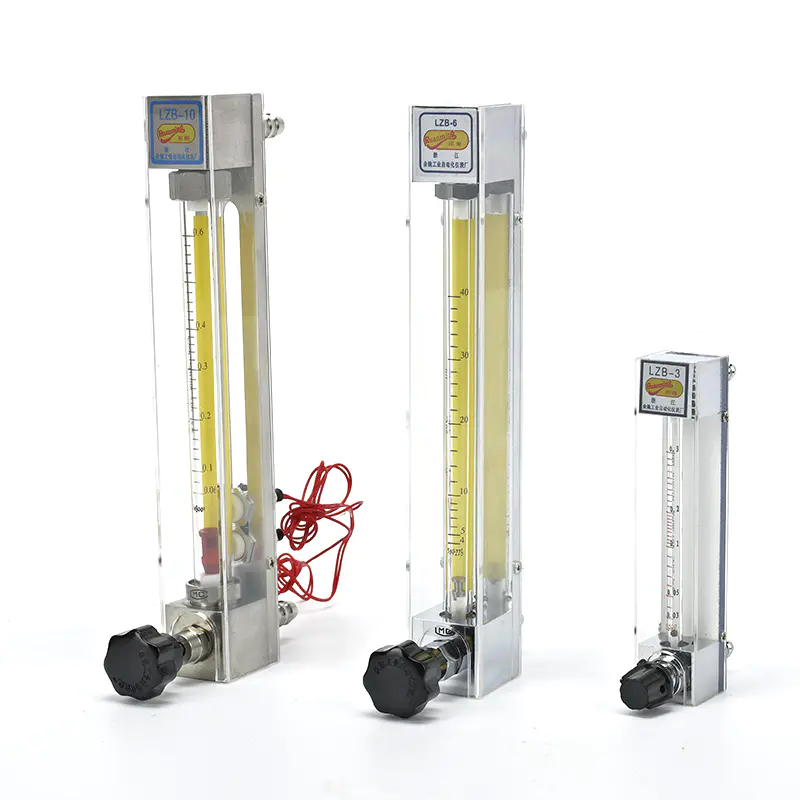

LZB-3/4/6/10 Series Small Flow Flow Meter

Place of Origin	Zhejiang China	Working Pressure	≤1 Mpa	Connection	ThreadedHose
Model NO.	LZB – Series	Max Temp.	60℃	Tube material	Glass
Medium	Water, Liquid, Air, Gas	Customized Support	OEM, ODM, OBM	Size	3mm to 10mm
Accuracy	±4%	Brand Name	ZYIA	Sample	Available

LZB – 3/4/6/10 Series Glass rotameter is used to measure the instantaneous one-way non-pulsating Fluxof liquid or gases in pipes Fields such as chemical, petroleum, medicine, fertilizer, food, sugar refinery, paper marking, light industry, textile, printing and dyeing, environmental protection, etc.PTFE, a high-quality corrosion resistant material is used at the main contact parts of the corrosion-resistant glass rotameter to contact the medium.

It has a very good performance of corrosion resistance in measuring various kinds of acid flow (except for hydrofluoric acid), alkali, oxidant, strong oxidation acid, organic solvents and other erosive gases and liquids.

Technical Parameters of LZB-Series Glass Rotameter

Model		LZB-3	LZB-4	LZB-6	LZB-10
Diameter(mm)		Ф3	Ф4	Ф6	Ф10
Range	Liquidl/h	2.5-25ml/min	1-10	★ 1-10	6-60
		4-40ml/min	1.6-16	★ 100-800ml/min	10-100
		6-60ml/min	1.6-16	2.5-25	10-100
		★ 10-80ml/min	2.5-25	4-40	16-160
		10-100ml/min	★ 3.6-36	6-60	★ 25-250
		★ 0.3-3l/h
	GasNm³/h	0.03-0.3l/min	★ 0.2-2.5l/min	0.04-0.4	0.1-1
		0.06-0.6l/min	★ 0.2-2.5l/min	0.04-0.4	0.16-1.6
		0.1-1l/min	0.016-0.16	0.06-0.6	0.25-2.5
		0.15-1.5l/min	0.025-0.25	★ 1-10l/min	★ 5-50l/min
		★ 0-100l/h	0.04-0.4	0.1-1	★ 0.5-5
					★ 0.6-6
					★ 0.6-7
Accuracy (±%)		4、6	2.5、4	2.5	2.5
Pressure (MPa)		≤0.6	≤1	≤1	≤1

Range with ★ represents customer tailored special range.

Dimensions of LZB-3/4/6/10(include Model F, S, B) Flow Meter

Model	Dimensions ( mm )
Model	A	B	C	D	E	F
LZB-3		116	136	Ф8	26X25
LZB-4	178	204	234	Ф9	39.5X34	2-M6
LZB-6	178	204	234	Ф9	39.5X34	2-M6
LZB-10	178	208	238	Ф12	39.5X34	2-M6
