Basic type: 401008

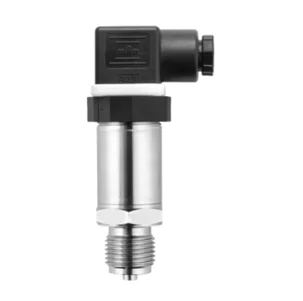

OEM pressure transmitter for railway applications
This pressure transmitter has a completely welded measuring system without a seal and has been specifically designed for use in rail vehicles. The applied silicon sensor is extremely resilient even at low measuring ranges.
| General technical data | |
|---|---|
| Process connection | All screw connections that are standard in the industry |
| Medium temperature | -40 to +125 °C |
| Output | 4 to 20 mA, two-wire |
| Input | 2.5 to 60 bar relative pressure; 0 to 40 bar absolute pressure |
| Measuring system | Silicon sensor with stainless steel separating membrane (piezoresistive) |
| Accuracy (linearity) | 0.25 to 0.3 % |
