The MS 3780 insertion sensor for electromagnetic flow meters is used for mounting in depressurized lines and with diameters from 80 to 2,000 mm. It is ideal for line monitoring and HVAC applications. ISOIL Industria offers a wide choice of sizes for diameter pipes.
,

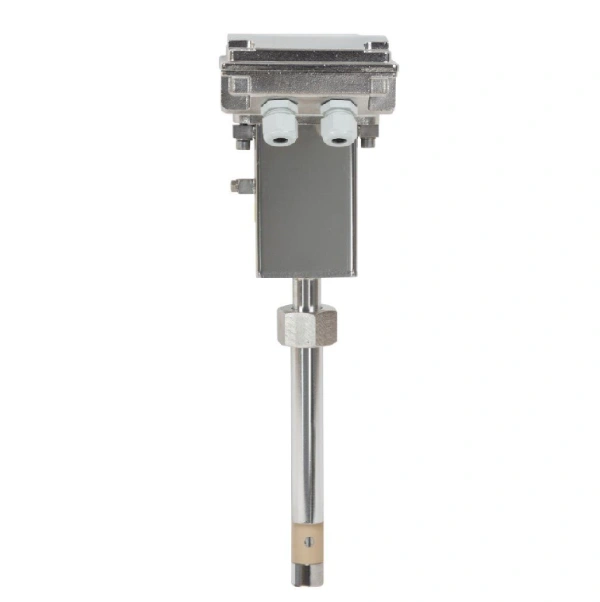

Insertion sensor for electromagnetic flow meter MS3780

  • The MS 3780 insertion sensor for electromagnetic flow meters is used for mounting in depressurized lines and with diameters from 80 to 2,000 mm.
  • It is ideal for line monitoring and HVAC applications.
  • ISOIL Industria offers a wide choice of sizes for diameter pipes.

Product Attachments

BROCHURE | DATASHEET

Categories: , Brand:

The insertion sensor for electromagnetic flow meters MS3780, flow meters, energy meters, ultrasonic flowmeters, and industrial automation systems have been ISOIL Industria‘s passion and continuous research since 1958, and for any information or advice, please do not hesitate to contact our specialists.

Technical Specifications

  • Sensor material: AISI316 stainless steel
  • Nominal pressure: PN 16
  • Process connections: Threaded or flanged
  • Liquid temperature: from -20 to + 100 ° C (130 ° for separate version)
  • Coating material: PEEK
  • Electrode material: Hastelloy C276
  • Accuracy: ± 2% of the value read (regardless of the coupled converter).
