Basic type: 603070
Surface-mounted thermostat

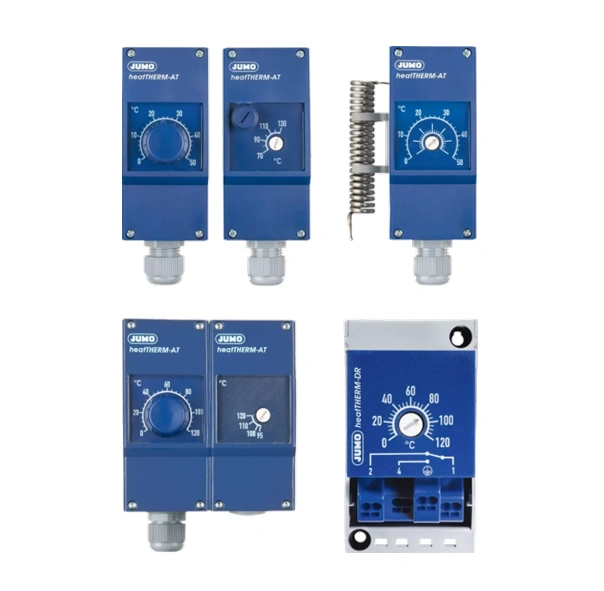

The JUMO heatTHERM-DR (design type 7+8) type is a specific variation with a special case bottom section for DIN rail or wall mounting. As a result, easy installation on mounting rails TH35 according to DIN EN 60715 (e.g. in control cabinets) is possible.
| General technical data | |
|---|---|
| Versions | Temperature controller (TR), temperature monitor (TW), safety temperature monitor (STW), safety temperature limiter (STB) |
| Switching capacity | 16 A, 230 V |
| Switching elements | Single-pole snap-action switch |
| Maximum control range/limit value | 350 °C |
| Protection type | IP40, IP54 optional |
| Areas of application | Building automation, heating industry, air-conditioning industry, control cabinets (DR), general mechanical engineering |
| Approvals | DIN, UL, PED, EAC |
| Features | Single and double thermostat; room thermostat; thermostat for DIN-rail mounting; exhaust gas temperature monitor |
