- Meter Body Size: 1″
- Body Type: Low Flow
- Local/Remote Display: Local
- Display Type: Digital LCD

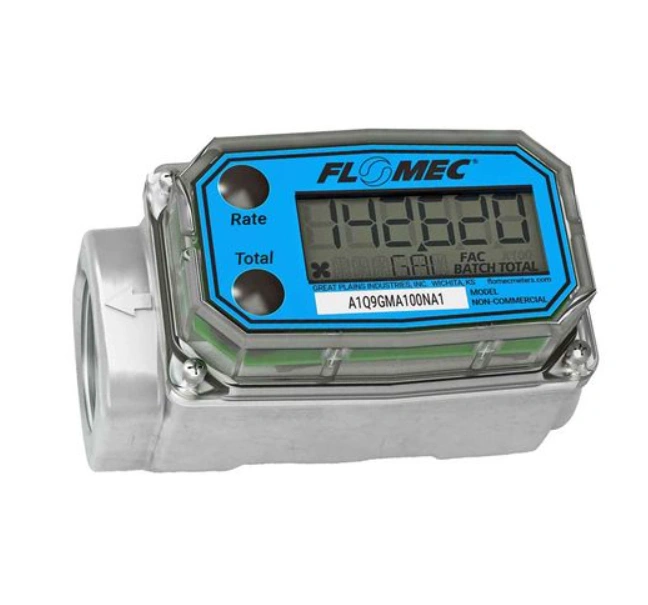

- Flow Meter Type: A1 Series – COMMERICAL GRADE METER
- Std Calibration Reports Included: Yes
- Warranty Period: 1 Year
- Competitor Model Numbers: 03A30GM
- Product Type: Rate & Totals
- Benefits & Features: 2-Year Battery Powered; 6 Digit Display – Floating Decimal; Rate of Flow; Batch & Cumulative Totals;Factory Calibrated and Field Calibratable; Add-On Output Options; FM Approved Class I, Div. I; Choice of Gallons or Liters;Custom Programmable Display (including UOM)
- Max Pressure Drop (at Max Flow in test conditions): 2 PSI
- Repeatability (based on test conditions): ± 1.0%
- Recommended Strainer Size: 120 Mesh (125 Microns)
- Max. Particle Size: .005″ / .127 mm
- Operating Temp Without Local Computer or With Remote Computer: -40 to 250°F (-40 to 121°C) [Opt’l]
- Accuracy (% of Reading) Factory Calibrated with Computer: Up to ± 5%<br>[Accuracy can vary up to ± 5% depending on installation and fluid type. Field Calibration is recommended for best accuracy.]
- Maximum Viscosity: 100 cps<br>[For viscous fluids like oils, the temperature must not fluctuate more than ±5°F to avoid accuracy fluctuations]
- Max Pressure Drop (at Max Flow in test conditions): 2 PSI
- Repeatability (based on test conditions): ± 1.0%
- Recommended Strainer Size: 120 Mesh (125 Microns)
- Max. Particle Size: .005″ / .127 mm
- Operating Temp Without Local Computer or With Remote Computer: -40 to 250°F (-40 to 121°C) [Opt’l]
- Accuracy (% of Reading) Factory Calibrated with Computer: Up to ± 5%<br>[Accuracy can vary up to ± 5% depending on installation and fluid type. Field Calibration is recommended for best accuracy.]
- Maximum Viscosity: 100 cps<br>[For viscous fluids like oils, the temperature must not fluctuate more than ±5°F to avoid accuracy fluctuations]
