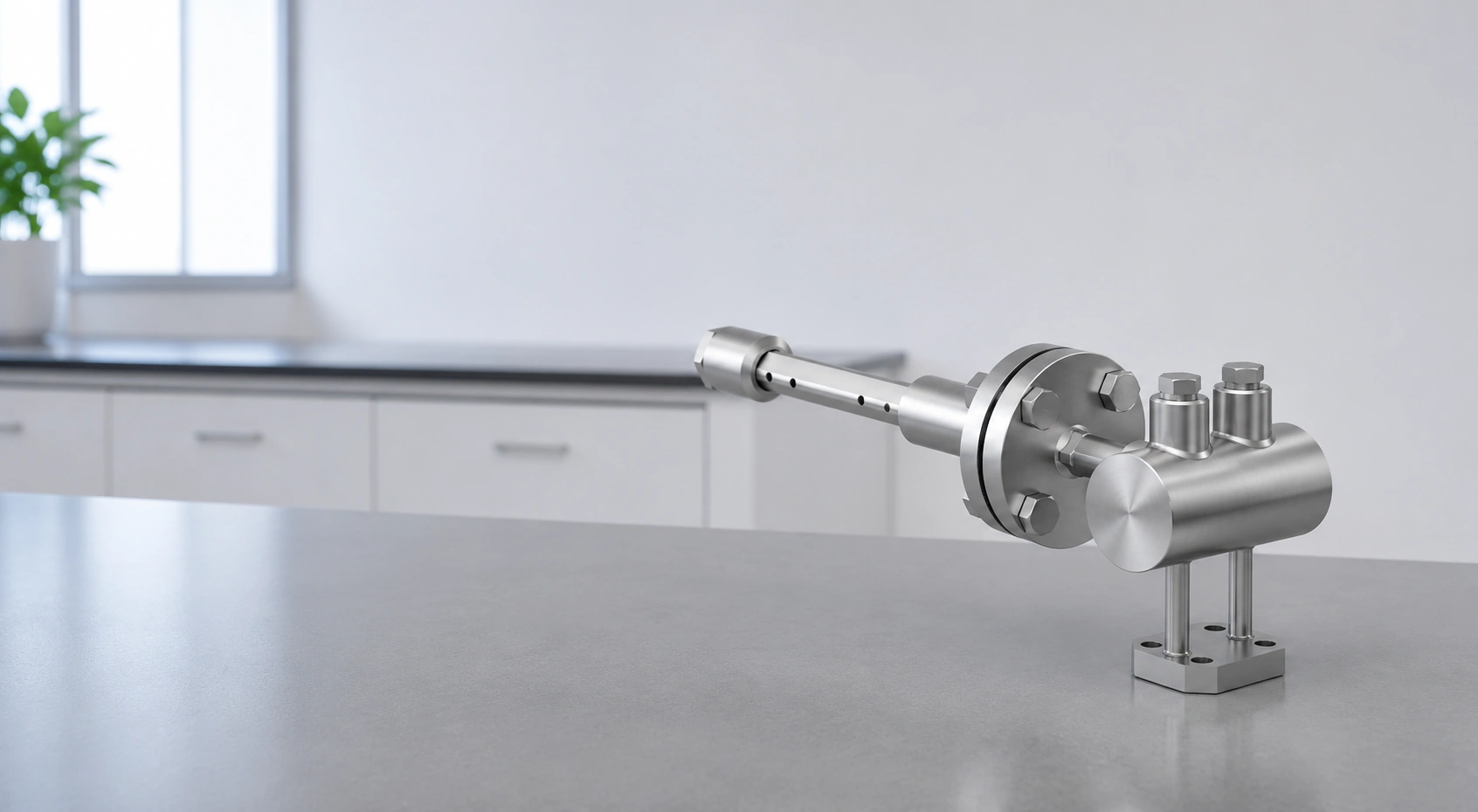

Pitot Tube
Pitot Tube (Annubar) Flow Meter ใช้หลักการ Differential Pressure ในการวัดอัตราการไหลของของเหลว ก๊าซ และไอน้ำ ช่วยลดแรงดันตกคร่อม ติดตั้งได้ในท่อขนาดใหญ่ พร้อมความแม่นยำและความคุ้มค่าสูง
Showing all 4 results
-
Differential Pressure
PITOBAR – Direct Transmitter Mounting
Read morePITOBAR Averaging Pitot Tube for Direct Transmitter Mounting (Type DK203, DK204, DK205, DK253, DK254, DK255)The PITOBAR Averaging Pitot Tube is used to measure the flow of liquid and gasses in horizontal or vertical pipe lines. Its working principle is derived from the classic or single point pitot tube. However, as opposed to the single point pitot tube, the PITOBAR Averaging Pitot Tube has a number of holes depending on pipe size pointing towards the upstream side. One port pointing downstream measures the static pressure. The main advantages of this flow element are its low installation costs and low pressure loss compared to other flow elements, especially in larger pipe sizes. -
Differential Pressure
PITOBAR – Larger Pipe Sizes
Read moreEMCO PITOBAR Averaging Pitot Tube for Larger Pipe Sizes (Type PC 450, PC455)The PITOBAR Averaging Pitot Tube is used to measure the flow of liquid and gasses in horizontal or vertical pipe lines. Its working principle is derived from the classic or single point pitot tube. However, as opposed to the single point pitot tube, the PITOBAR Averaging Pitot Tube has a number of holes depending on pipe size pointing towards the upstream side. One port pointing downstream measures the static pressure. The main advantages of this flow element are its low installation costs and low pressure loss compared to other flow elements, especially in larger pipe sizes. -
Differential Pressure
PITOBAR – Remote Transmitter Mounting
Read morePITOBAR Averaging Pitot Tube for Remote Transmitter Mounting (Type DK200, DK250)The PITOBAR Averaging Pitot Tube is used to measure the flow of liquid and gasses in horizontal or vertical pipe lines. Its working principle is derived from the classic or single point pitot tube. However, as opposed to the single point pitot tube, the PITOBAR Averaging Pitot Tube has a number of holes depending on pipe size pointing towards the upstream side. One port pointing downstream measures the static pressure. The main advantages of this flow element are its low installation costs and low pressure loss compared to other flow elements, especially in larger pipe sizes.The PITOBAR Averaging Pitot Tube for Remote Transmitter Mounting provides accessibility and is particularly suitable in applications with space constraints or other environmental conditions that prevent direct mounting. Choose Type DK200 or DK250 depending your requirements for pipe and probe size (see table for maximum allowable differential pressure below). -
Differential Pressure
PITOBAR – Steam Flow
Read moreEMCO PITOBAR Averaging Pitot Tube for Steam Flow (Type DK251)The PITOBAR Averaging Pitot Tube is used for flow measurement of liquid and gasses in horizontal or vertical pipe lines. The PITOBAR Averaging Pitot Tube principle of operation is derived from the classic or single point pitot tube. As opposed to the single point pitot tube, the PITOBAR averaging pitot tube has a number of holes depending of pipe size pointing towards the up-stream side. One port pointing down stream measures the static pressure. The PITOBAR has very low installation costs and the pressure loss is low compared to other flow elements, especially in larger pipe sizes.
