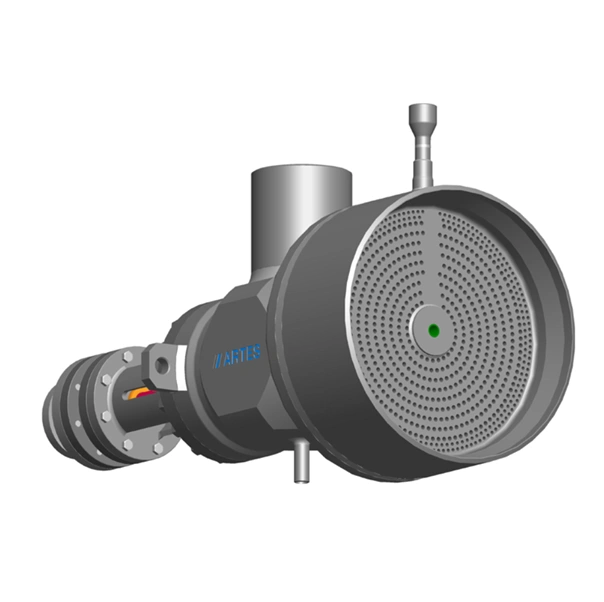

Steam Converting Station

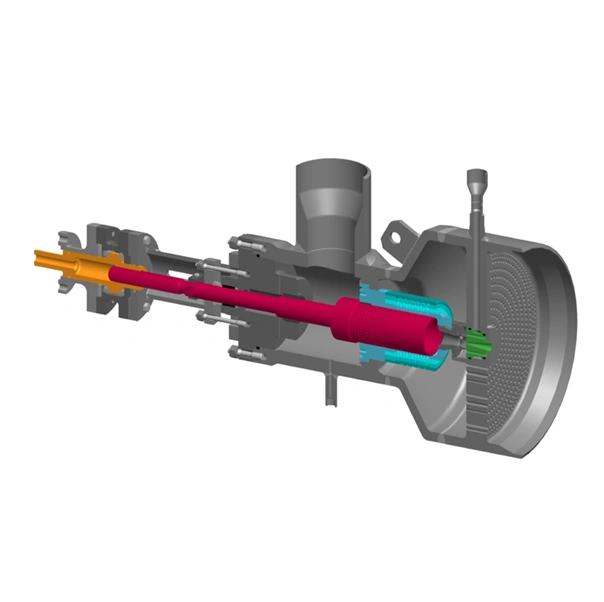

Steam Converting Station - Image 2

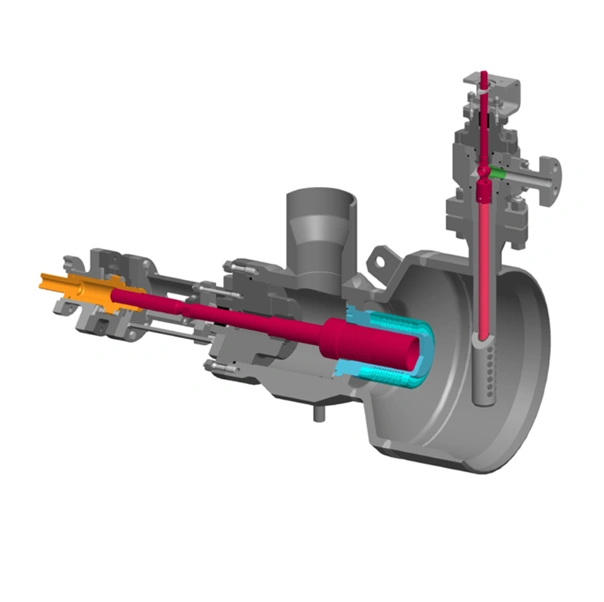

Steam Converting Station - Image 3

Steam Converting Station

The ARTES steam converting station is a control valve for reduction of the steam pressure or regulation of the steam volume as well as for steam cooling. Characteristic for the pressure and quantity regulation of the ARTES steam converting station is multi-stage, sub-critical pressure relief.

Basic technical data

Nominal pipe size: DN 50 … DN 800 (2” … 32”)
Nominal pressure class: up to PN 400 (ANSI-class 2500)
Temperature: up to 600 °C

PRODUCT ATTACHMENTS

ติดต่อขอรายละเอียดหรือสนใจสินค้า

Line : @intech2000
Email : intech@intech2000.com
Tel : 02-440-1853

Category: VALVE Brand: ARTES

Description

Typical places of use

Steam pressure reduction valve
HP/MP/LP bypass station
Transfer station
Reheater safety station

Main advantages

Optimal steam conversion across all application ranges
Individual adaptation of the throttle levels
Fast steam cooling in all application ranges
Low noise due to sub-critical pressure relief
Wear parts can be replaced on site
