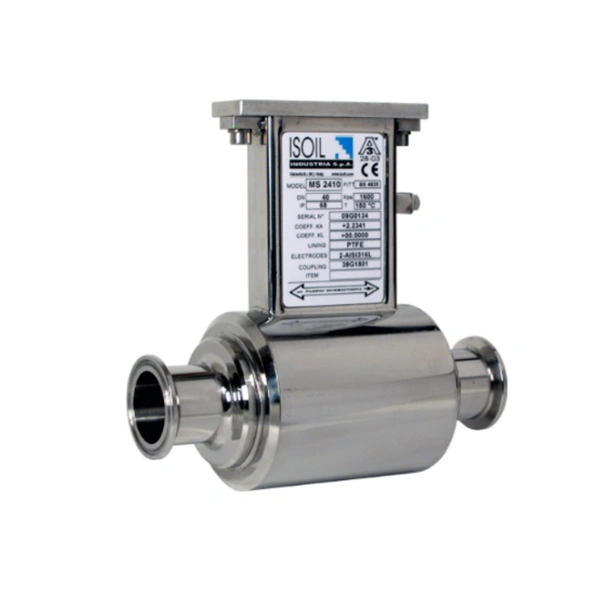

Sanitary sensor for electromagnetic flow meter MS2410

  • The MS 2410 sanitary sensor ISOMAG for electromagnetic flow meters is specific for use in food or pharmaceutical plants.
  • It is resistant to vacuum (200 mbar absolute at a temperature of 100 ° C), ideal for CIP cycles, 3A and FDA certified.
  • ISOIL Industria offers a wide choice for process connections and electrode material.

Product Attachments

BROCHURE | DATASHEET

Categories: , Brand:

The sanitary sensor for electromagnetic flow meters MS 2410, flow meters, energy meters, ultrasonic flowmeters, and industrial automation systems have been ISOIL Industria‘s passion and continuous research since 1958, and for any information or advice, please do not hesitate to contact our specialists.

Technical Specifications

  • Body material: SS AISI304/316
  • Nominal diameter: from ND 3 to ND 100
  • Flow range: 0..280 m3/h
  • Nominal pressure: from PN 16 to PN 25
  • Wide choice of process connections.
    Liquid temperature: from -20 to +150°C
  • Lining materials: PTFE
  • Wide choice of electrode materials.
  • Available in compact or separate versions
  • Accuracy and repeatability data are according to the chosen converter
