RT40 - Flow Rate Totaliser -

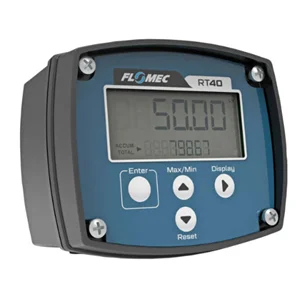

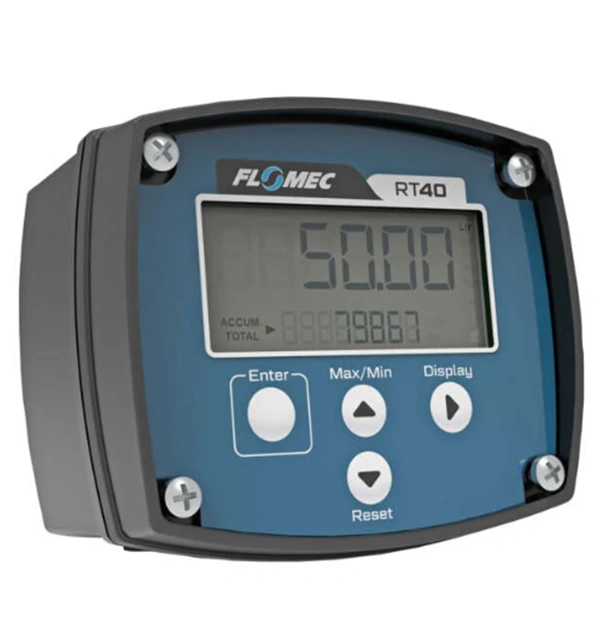

RT40 – Flow Rate Totaliser

The FLOMEC® RT40 Flow Rate Totalizer is a perfect choice for users who require a simple display to read flow rate or totalised volume from a flow meter. The configurable digital output (pulse or alarm) also makes the RT40 well suited to use with a fuel management system, PLC, or a remote data logger.

The RT40 is a cost-effective solution for economic operations, seamlessly integrating with FLOMEC Oval Gear, Turbine and Insertion meters equipped with a pulse output. This streamlined compatibility enhances data analysis at a glance, eliminating the necessity for intricate systems in simple installations.

Product Attachments

Features

An economic and robust LCD display suitable for mine sites and service truck installations
Digital output can be set as a flow alarm to notify system faults, such as insufficient lubrication to a bearing
Five-point linearisation allows significant improvement in accuracy for most positive displacement or turbine flow meters
Universal inputs compatible with most positive displacement or turbine flow meters
Intuitive user experience with in-built diagnostics for faster commissioning and troubleshooting of issues
Quadrature input allows measurement of bi-directional flow (with suitable flow meter)
Polycarbonate screen protector maintains readability of the display while protecting from impacts
Totals units are selectable for Litres, Cubic Metres, US Gallons, Imperial Gallons, Millilitres (Cubic Centimetres), Quarts, Fluid Ounces, Cubic Feet, Barrels, Kilograms, Pounds, or Custom.
Easy and secure programming; PIN protected with simple scrolling English prompts on screen

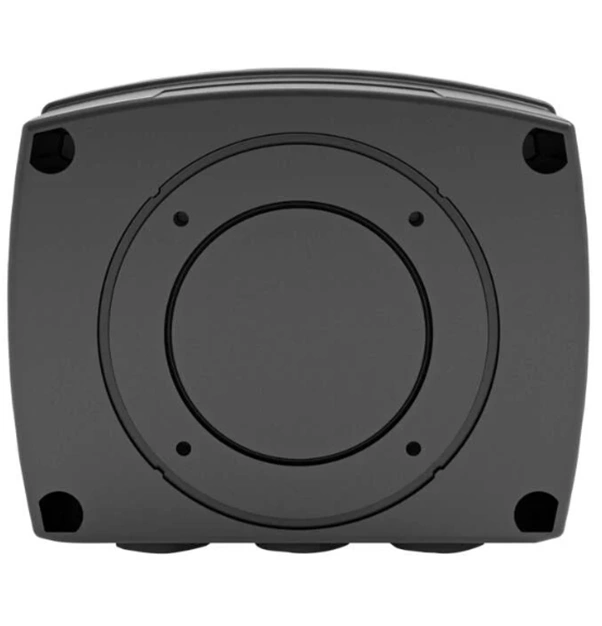

Robust IP65 Aluminum housing or IP66/67 glass-reinforced nylon housing capable of being field or panel mounted
**External power is required for backlight or pulse output features.
