| General Specifications | |
|---|---|
| Spec name: | Description: |
| Operating Parameters | For clean fluids in full pipes, with typically less than 2% by-volume concentration of solids or bubbles. Also suitable for wastewater or sludge flows with low solids concentration. |
| Configuration | Built-in 5-button keypad interface with English, French, and Spanish menu language selection |
| Electronics Enclosure | IP67 when transducer cables connected. IP65 when transducers cables not connected. Aluminum enclosure with silicone protective end covers. |
| Flow Velocity Range | ±0.03 m/s to 12.2 m/s (±0.1 to 40 ft/s) |
| Accuracy | ±1% of reading or ±0.0046 m/s (±0.015 ft/s), whichever is greater. Repeatability & Linearity: ±0.25% |
| Power Input | Built-in rechargeable lithium polymer battery for up to 15 hours continuous operation. External mains to USB-C charger with 100-240V AC, 50-60Hz, 0.6A input; and 5.0V DC, 3A, 15W output |

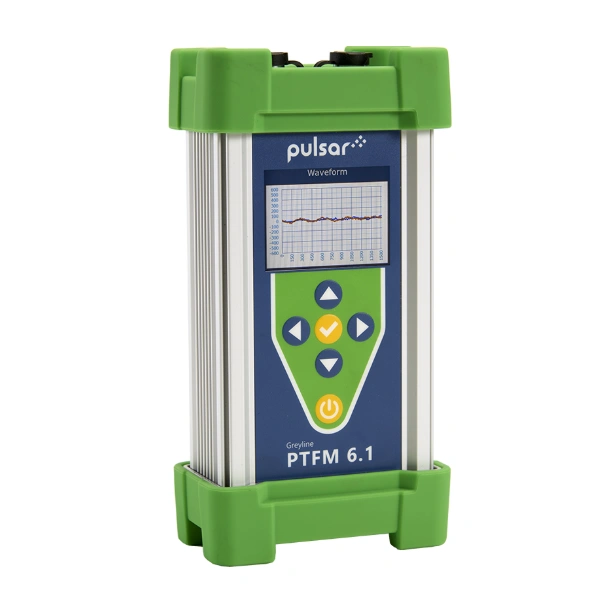

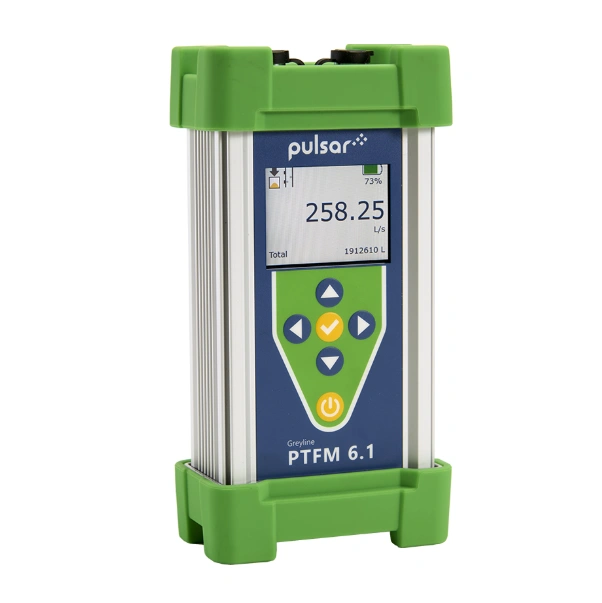

| Display | Color TFT LCD display, IPS type, 2.8” screen size, 320 x 240 resolution, 500 NITS brightness, super wide view. |
| Outputs | Log files, daily log files, parameter settings files, and waveform capture files via USB-C flash drive (included) |

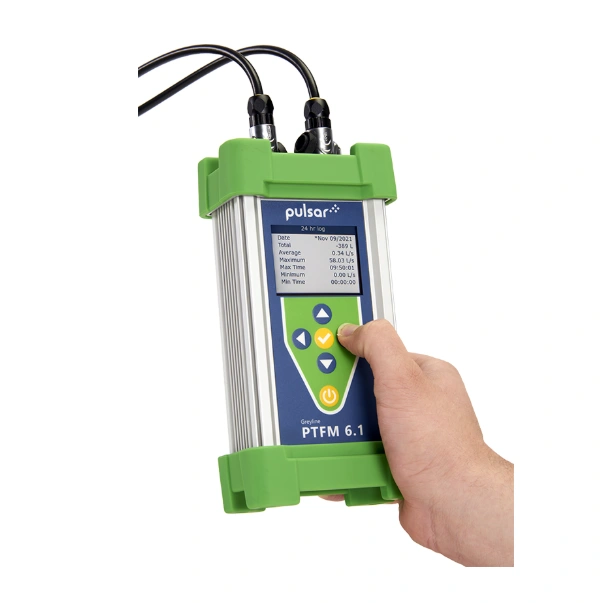

| Data Logger | 12 million point capacity, configurable for velocity or flow rate, date and time stamped, configurable format for Greyline Logger Software (LG2) or CSV, available intervals of 10 s, 30 s, 1 min, 2 min, 5 min, 10 min, 15 min, 30 min, and 1 hr |
| PC Software | Free Greyline Logger Software for Windows. For display, manipulation, analysis, and exporting of data. |
| Operating Temp. (Electronics) | -20 °C to +60 °C (-5 °F to +140 °F) |

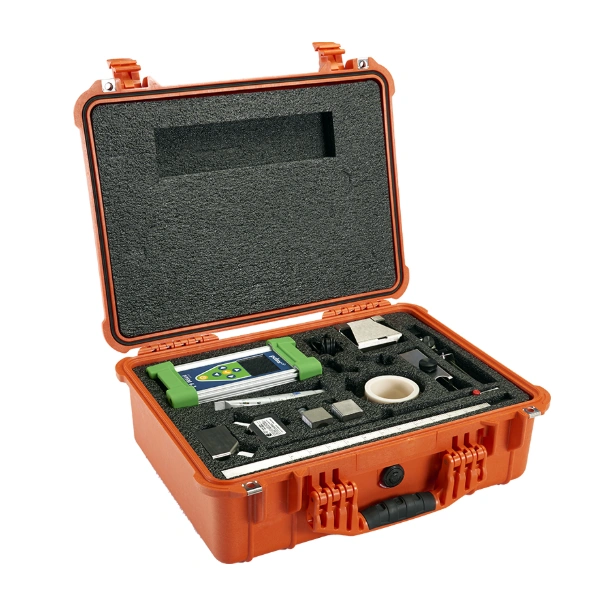

| Carry Case | IP67, with protective molded foam, with room for all transducer sizes and installation hardware |
| Language Selection | English, French, Spanish |
| Approximate Shipping Weight | 5.5 kg (12 lb) |
| Transducer Specifications | |
|---|---|
| Spec name: | Description: |
| Pipe Diameter (Nominal) | SE16A: Recommended for 15 mm to 50 mm (0.5 in to 2 in); Suitable for 50 mm to 150 mm (2 in to 6 in) SE16B: Recommended for 50 mm to 250 mm (2 in to 10 in); Suitable for 250 mm to 1,200 mm (10 in to 48 in) SE16C: Recommended for 300 mm to 1,200 mm (12 in to 48 in); Suitable for 100 mm to 300 mm (4 in to 12 in) |
| Pipe Materials | Any metal or plastic sonic conducting material including carbon steel, stainless steel, ductile iron, concrete-lined ductile iron, cast iron, PVC, HDPE, PVDF, fiberglass, copper, brass, aluminum, and pipes with bonded liners including epoxy, rubber, and Teflon |
| Flow Velocity | ±0.03 m/s to 12.2 m/s (±0.1 ft/s to 40 ft/s) typical |
| Operating Frequency | SE16A: 2.56 MHz SE16B: 1.28 MHz SE16C: 640 kHz |
| Operating Temperature | -40 °C to +150 °C (-40 °F to +300 °F) |
