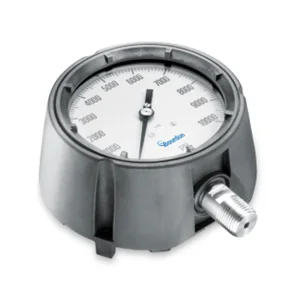

GENERAL SPECIFICATION
Housing
- Nominal size
-
- 115 mm
- Case material
-
- Polypropylene
- Bezel ring material
-
- Polypropylene
- Window material
-
- Laminated safety glass
- Window gasket
-
- Elastomer
- Protection rating (EN 60529)
-
- IP67
- Dial
-
- White, aluminium
- Pointer
-
- Black, aluminium
- Adjustable micro metric pointer (P ≥ 1.6 bar)
- Movement material
-
- Stainless steel
- Safety
-
- Solid front gauge with solid front and pressure relief back
Temperature
- Ambient temperature
-
- -20°C … +70°C
- Storage temperature
-
- -40°C … +70°C
- Media temperature
-
- -40°C … +200°C (not filled)
Wetted parts
- Process connection material
-
- Stainless steel 1.4404 / AISI 316L
- Bourdon tube
-
- Stainless steel 1.4404 / AISI 316L
Performance
- Accuracy according to ASME B40.100
-
- Grade 2A, ± 0.5%
- Min. measuring range
-
- 0 … 0.6 bar
- Max. measuring range
-
- 0 … 1600 bar
- Type of pressure
-
- Gauge
- Compound
- Vacuum
- Pressure limitation (ranges ≤ 600 bar)
-
- Steady: 100 % of full scale value
- Fluctuating: 90 % of full scale value
- Short time: 130 % of full scale value
- Pressure limitation (ranges > 600 bar)
-
- Steady: 75 % of full scale value
- Fluctuating: 65 % of full scale value
- Short time: 100 % of full scale value
- Thermal drift (reference: +20 °C)
-
- ± 0.4 % FS/10K
Weight
- Gauge
-
- 680 g unfilled
- 1300 g filled
