PDFM 6.1 - Portable Doppler Flow Meter

PDFM6.1

Portable Doppler Flow Meter

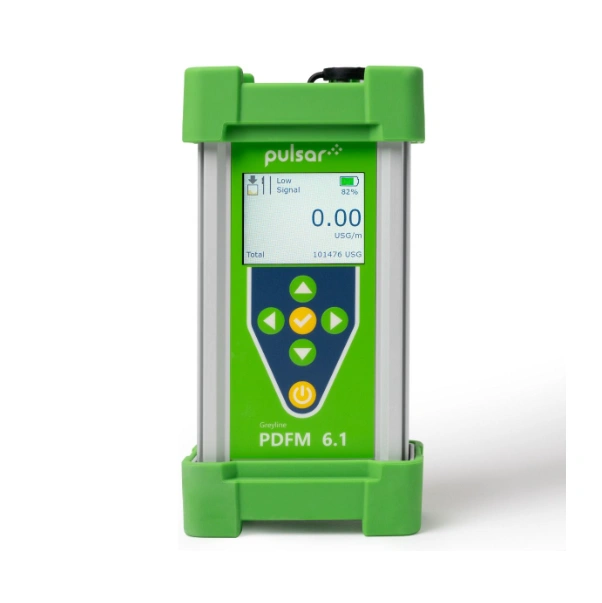

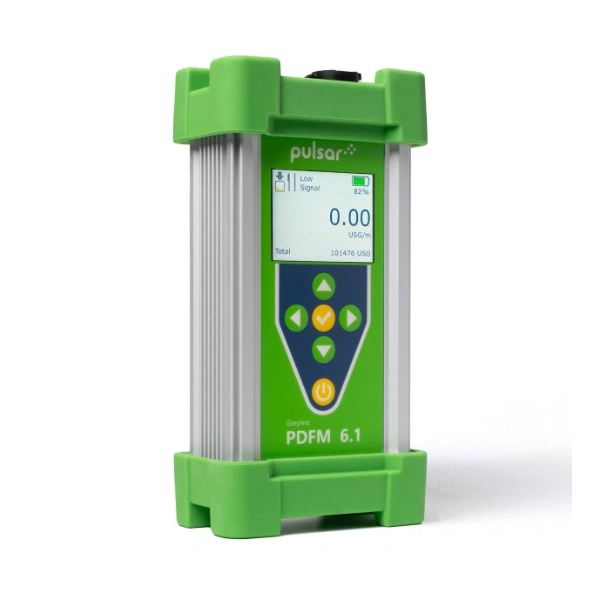

The PDFM 6.1 Portable Doppler Flow Meter provides fast, accurate, non-invasive flow measurement for the most challenging industrial environments and mediums. No other clamp-on flow meter is easier to install or operate. Whether you need flow measurement when you didn’t have it before, or you need to prove that your existing system is performing properly, the PDFM 6.1 Portable Doppler Flow Meter is here to simplify the challenging.

With more advanced signal processing, a low-power mode for extended flow logging applications, and a rugged IP67 extruded aluminum enclosure, the PDFM 6.1 is the right choice for your next immediate or long-term flow measurement application for fluids with solids and undissolved gases present, like raw sewage, aerated water, viscous liquids, slurries, and abrasives. No downtime is required.

Product Attachments

General Specifications
Spec name:	Description:
Flow Rate Range	±0.03 m/s to 12.2 m/s (±0.1 ft/s to 40 ft/s) in most applications
Flow Rate Range	Ultrasonic Sensor mounts on any pipe from 12.7 mm to 4.6 m ID (0.5 in to 15 ft)
Display	Color TFT LCD Display, IPS type, 2.8″ screen size, 320 x 240 resolution, 500 NITS brightness, super wide view
Power Input	Built-in rechargeable lithium polymer battery for up to 15 hours continuous operation External mains to USB-C charger with 100-240V AC 50-60 Hz, 0.6A input; and 5.0V DC, 3A, 15W output
Outputs	Log files, daily log files, parameter settings files, and waveform capture files via USB-C flash drive (included)
Data Logger	12 million point capacity, configurable for velocity or flow rate, date and time stamped, configurable format for Greyline Logger Software (LG2) or CSV, available intervals of 10 s, 30 s, 1 min, 2 min, 5 min, 10 min, 15 min, 30 min, and 1 hr
PC Software	Free Greyline Logger Software for Windows. For display, manipulation, analysis, and exporting of data.
Operating Temperature (Electronics)	-20 °C to +60 °C (-5 °F to +140 °F)

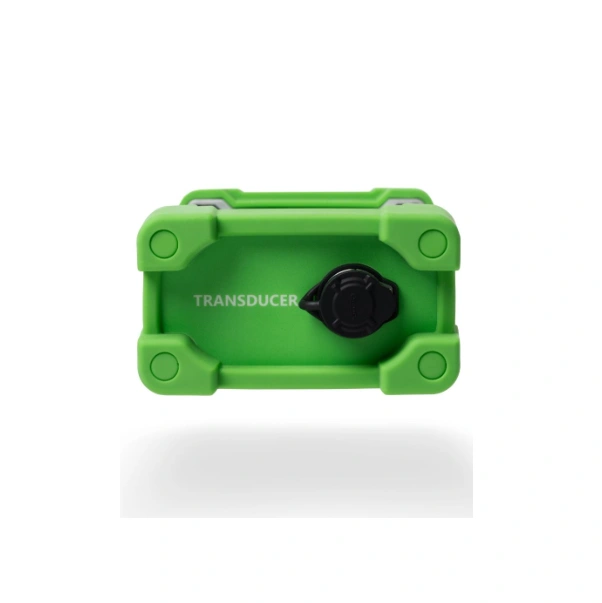

Electronics Enclosure	IP67 when transducer cables connected. IP65 when transducer cables not connected. Aluminum enclosure with silicone protective end covers.

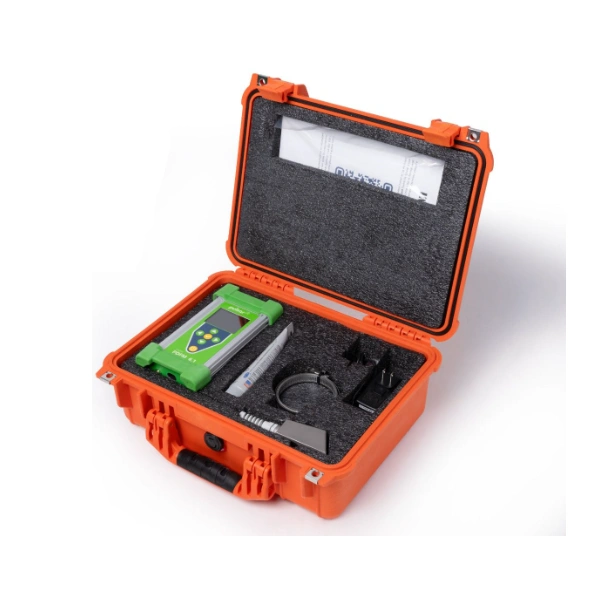

Carry Case	IP67 with protective molded foam with room for transducer and installation hardware
Accuracy	±2% of reading or 0.03 m/s (0.1 ft/s), whichever is greater. Requires solids or bubbles minimum size of 100 microns, minimum concentration 75 ppm. Repeatability: ±0.1%, Linearity ±0.5%
Calibration	Built-in 5-button keypad interface. Optional user-configured password protection.
Language Selection	English, French, Spanish

Transducer Specifications
Spec name:	Description:

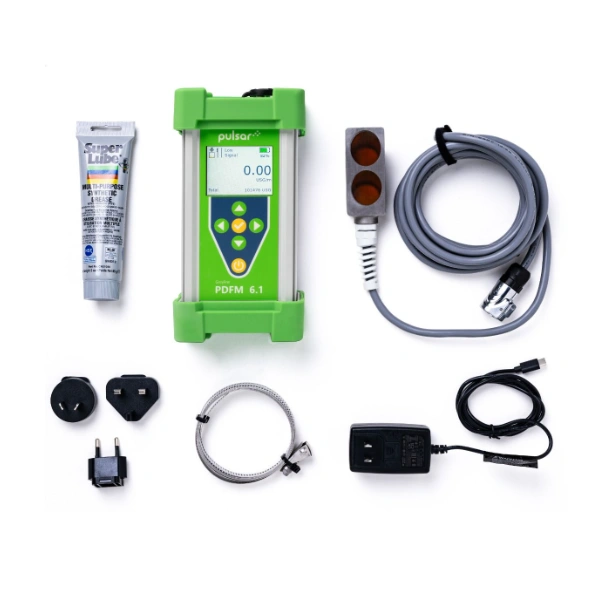

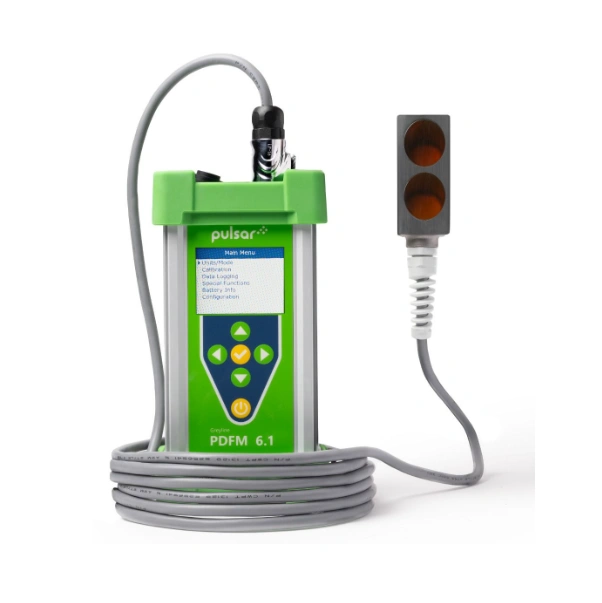

Standard Model PSE4-A2	Clamp-on, single-head ultrasonic for pipes from 12.7 mm to 4.6 m ID (0.5 in to 15ft) with 3.4 m (12 ft) shielded dual-coaxial cable and latching connector
Sensor Mounting Kit	Stainless steel pipe clamp and 3.0 fl oz coupling compound
Operating Temperature	-40 °C to 150 °C (-40 °F to 300 °F)
Ingress Protection	IP68, can withstand 10psi (approx. 23 ft or 7 m of H2O) for 24 hours
