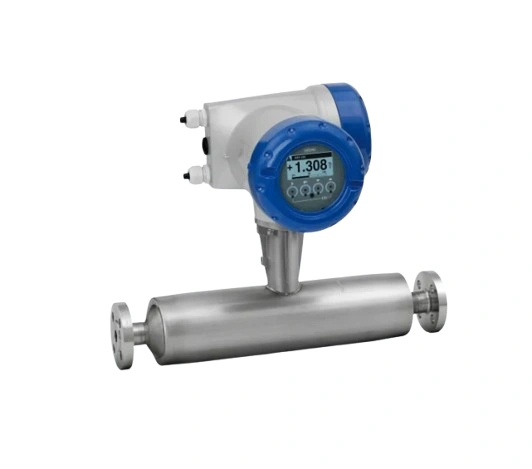

The OPTIMASS 1400 is a cost-effective twin straight tube Coriolis mass flowmeter for a wide range of standard applications with gases and liquids (up to 170,000 kg/h or 6,235 lb/min). The meter features Entrained Gas Management (EGMTM) for liquid applications and thus maintains operation even with entrained gas of up to 100%.
The OPTIMASS 1400 features an optimised flow splitter for minimum pressure loss and can be drained and cleaned easily. Next to flange process connections it supports a wide range of standard hygienic connections for food and beverage applications. Like with all other KROHNE Coriolis mass flowmeters there are no installation restrictions as the OPTIMASS 1400 is not affected by crosstalk/line vibrations and can thus be installed in series or in parallel. It is also approved for use in hazardous areas. The Coriolis mass flowmeter provides enhanced diagnostics (NE 107) and comes with various digital communication options. Via the OPTICHECK Flow Mobile app all device settings can be managed on-site via a secure Bluetooth® connection. In this way, a variety of commissioning tasks, e.g. zero calibration or configuration of diagnostics, can be done wirelessly.
- Twin straight tube design
- Entrained Gas Management (EGMTM): meter maintains operation with air or gas entrainments in the medium
- Available with Ethernet-APL for hazardous areas
- Device commissioning, verification, diagnostics and monitoring via a secure wireless Bluetooth® connection (<20 m / 65.6 ft)
- Fast and completely digital signal processing
- Best-in-class price/performance ratio
- High accuracy mass, density and volume flow measurement (±0.15% of MV)
- Extensive sensor and process diagnostics (incl. NE 107)
- Integrated temperature measurement
- Optimised flow splitter for low pressure loss
- Optional PED approved secondary pressure containment up to 100 barg / 1450 psig
- Optional insulation, heating jacket or purge ports
- No crosstalk: resistant to installation and process effects
- On-site verification of flowmeter with OPTICHECK service tool
General information
| Product type | Flowmeter |
| Product family name | OPTIMASS |
| Product positioning | For universal applications and process control |
| Measurement principle | Coriolis |
| Measured media | Liquids, Gases |
Operating conditions
| Process pressure | max. 100 barg/ 1450 psig |
| Process temperature | -40…+130°C/ -40…+266°F |
Materials
| Measuring tube | Duplex stainless steel (1.4462/318) |
Process connections
| Flange connections | EN (1092-1): DN15…100 ASME (B 16.5): ½…4″ JIS (B 2220): 15…80A |
| Hygienic connections | Clamp (DIN 32676): DN25, DN40, DN50, DN80 Clamp (ISO 2852): 25, 40, 51, 76.1 Tri-Clamp: 1″, 1½”, 2″, 3″ Threaded ferrule (DIN 11851): DN25, DN40, DN50, DN80 Flange with groove (DIN 11864-2): DN25, DN40, DN50, DN80 Threaded ferrule (SMS 1146): 25 mm, 38 mm, 51 mm, 76 mm |
Approvals/Standards
| Certificates/Approvals Others | NACE |
| Certificates/Approvals Ex | ATEX, IECEx, NEPSI, EAC Ex, cFMus, INMETRO, KCs, UKEX |
| Certificates/Approvals Hygienic | FDA, 3A, EHEDG, EC 1935/2004 |
| Certificates/Approvals Marine | ABS, BV, CCS, DNV, KR, LR, NK, RINA, CRS, IRS, PRS, RS |
| Certificates/Approvals Nuclear | Nuclear qualification on request (e.g. acc. to ASME III, RCC-M/E, etc.) |
Communication
| Analogue outputs | 4…20 mA |
| Discrete outputs | Limit switches, Pulse, Frequency, Status |
| Digital outputs | FOUNDATION™ Fieldbus, HART®, Profibus-PA, Profibus-DP, Modbus RTU, EtherNet/IP™, PROFINET, Bluetooth®, PROFINET (Ethernet-APL) |
General
- Standard process applications up to 130°C / 266°F
- Measurement of liquids, gases and gas entrained liquids
- Portable installations on trucks, rail tankers, portable rigs etc.
- Applications with very low operating densities (<10 kg/m3)
Food and beverage industry
- Measurement of flow, density, specific gravity in brewing processes
- Flow measurement of beverages and fruit juices
- Dairy products
- Fat, oily and greasy products
- Dosing of additive food components
Pharmaceutical industry
- Batching, dosing, filling
- Solvent extraction
- Ultrapure water ring-main measurement
Chemical and other process industries
- Bulk loading
- Batching to reactors
Marine industry
- Fuel consumption measurement
Pulp and paper industry
- Batching and dosing of additives, bleaches and colourants
Water and wastewater industry
- Flocculant dosing
