Basic type: 408301

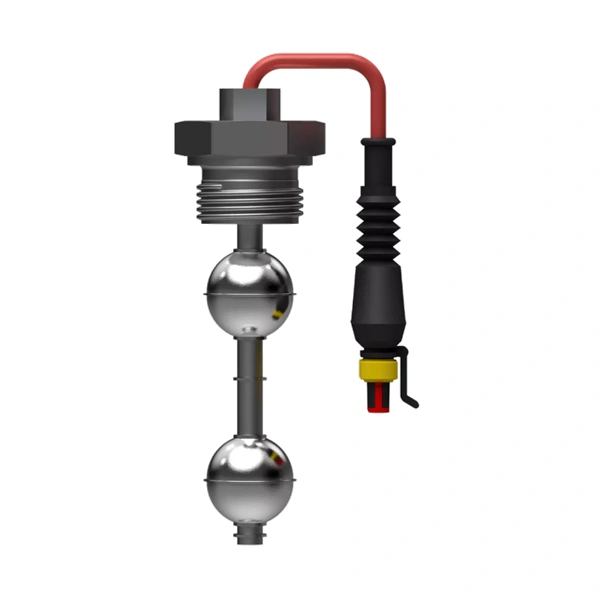

Float switch in miniature form
For point level measurement in liquids with up to 4 floats and up to 4 switching contacts. The optional temperature sensor can be used for point level measurement as well as to acquire temperature with only one measuring point.
| General technical data | |
|---|---|
| Switching capacity | Up to 250 V AC/DC; up to 1 A |
| Medium temperature | -52 to +240 °C |
| Contact versions | Normally closed contact; single-pole changeover contact; normally open contact; normally open contact, bistable |
| Float | Cylinder, CrNi (stainless steel) Ø 27; sphere, CrNi (stainless steel) Ø 29; sphere, Ti (titanium) Ø 29 |
| Protection rating | Up to IP68 |
| Approvals | ATEX, IECEx, CCC [Ex i, Ex d], DNV, WHG, EAC |
| Manufacturer’s declaration | Railway test according to DIN EN 50155, CE |
| Special features | The product does not fall under the Pressure Equipment Directive 2014/68/EU, since there is no pressurized housing (see separate certificate TÜV SÜD). |
