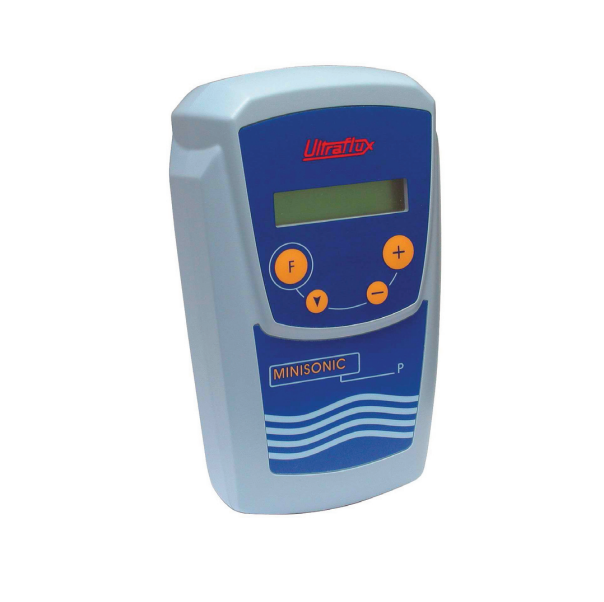

The Minisonic P is a portable ultrasonic flow meter designed for measuring the flow of liquids in full pipes with diameters up to 3,300mm. It is lightweight, easy to use, and features a robust design with a long battery life and automatic zero calibration.
MINISONIC P Portable Flow Meter เครื่องวัดอัตราการไหล Ultrasonic แบบพกพา รองรับการวัดแบบหลายท่อ เหมาะสำหรับตรวจสอบการไหลและ Leak Detection
- Lightweight (less than 1kg) and easy to install (typically less than 5 minutes).
- Signal quality display and intuitive operation.
- Supports multiple languages including English, French, German, Portuguese, Spanish, Italian, and Polish.
- Equipped with a backlit LCD screen and alphanumeric display.
- Data collection via current output or serial link with Excel macro integration.
- Measurement Range: Internal pipe diameter from 8mm to 3,200mm; External pipe diameter from 10mm to 3,300mm.
- Accuracy: Up to 0.5%.
- Repeatability: Up to 0.1%.
- Linearity: Up to 0.1%.
- Battery Life: Up to 40 hours with a charging time of 12 to 14 hours.
- Protection: IP67 ABS enclosure.
- Operating Temperature: 0°C to 50°C.
- Water management (drinking, waste, untreated) for pump flow control.
- Climate engineering for system balancing.
- Pharmaceutical sector for ultrapure water flows.
- Fire installations (sprinklers) for flow control.
