Basic type: 707090

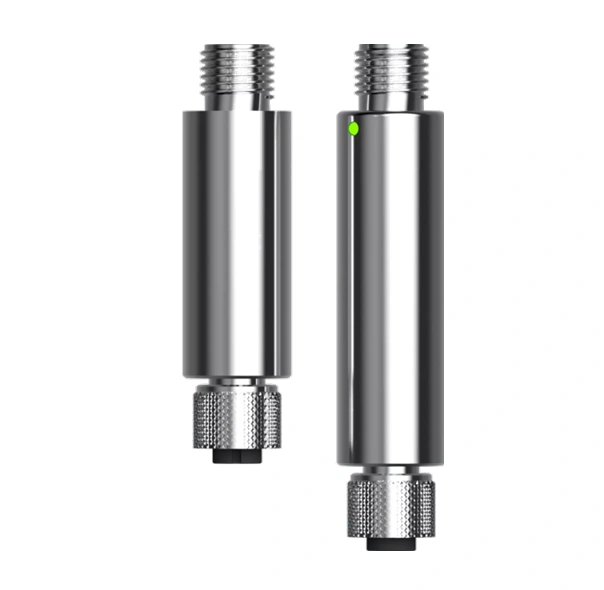

Cable transmitter for temperature
The temperature transmitter for Pt100 or Pt1000 sensors is ideal for simple retrofitting of plants. The user can choose between an analog output or an IO-Link interface. The cable transmitter’s high level of vibration and shock resistance makes it reliable and durable.
| General technical data | |
|---|---|
| Version | JUMO dTRANS T09 AS (analog output), JUMO dTRANS T09 DS (digital output) |
| Format | Cable transmitter |
| Mounting | In the cable line |
| Measurement input | RTD temperature probe with Pt100 or Pt1000, four-wire connection |
| Connection | M12 (on both sides) |
| Output | Current DC 4 to 20 mA or IO-Link interface |
| Housing | Stainless steel |
| Protection type | IP66, IP67, and IP69 |
| Approval | cULus |
| Special features | Customer-specific configuration possible, high degree of vibration and shock resistance, separated from temperature sensor (thermally and mechanically decoupled) |
