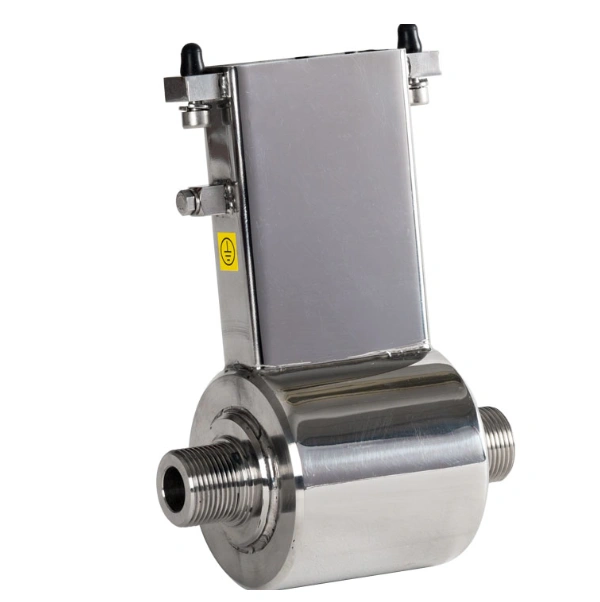

The microflow sensor for electromagnetic flow meters, MS501, flow meters, energy meters, ultrasonic flowmeters, and industrial automation systems have been ISOIL Industria‘s passion and continuous research since 1958, and for any information or advice, please do not hesitate to contact our specialists.
Technical Specifications
- Body material: AISI304/316 stainless steel
- Nominal diameters: from DN 3 to DN 20
- Connections: Threaded / DIN11851 / Tri-clamp / Tri-clover / SMS / Flanges UNI / ANSI / JIS
- Flow rate: 0..12.500 l / h
- Nominal pressure: from PN 16 to PN 40
- Coatings: Polypropylene / PTFE
- Body: AISI304 (MS501) / Polypropylene (MS600)
- Electrodes: AISI316 / Hastelloy C276 / Platinum / Tantallium / Titanium – Pressure: Up to PN40
- Fluid temperature: -20 ÷ 130 ° C
