| General Specifications | |
|---|---|
| Spec name: | Description: |
| Sensor Body Dimensions: | 90 mm x 140 mm (3.54 in x 5.51 in) |
| Weight: | 1 kg (2.2 lbs) |
| Sensor Body Material: | Valox 357 |
| Maximum Separation: | Up to 500 m (1,640 ft) |
| Max. and Min Temperature (Electronics): | -20 °C to +60 °C (-4 °F to +140 °F) |
| Velocity Range: | 0.3 m/s to 6 m/s (0.98 ft/s – 19.7 ft/s) |

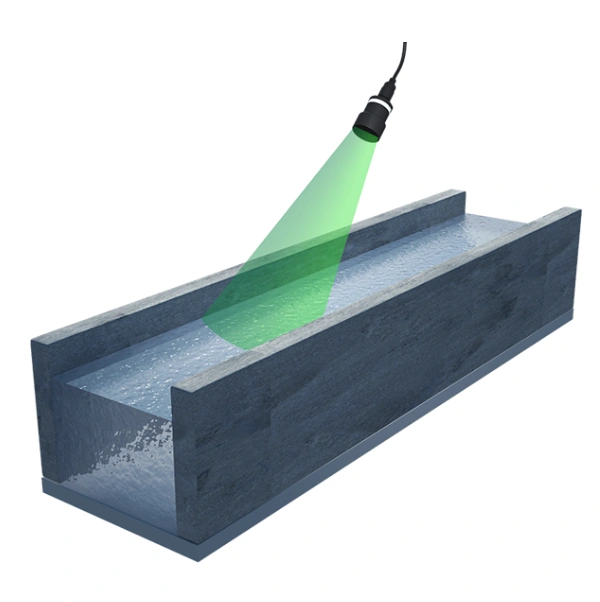

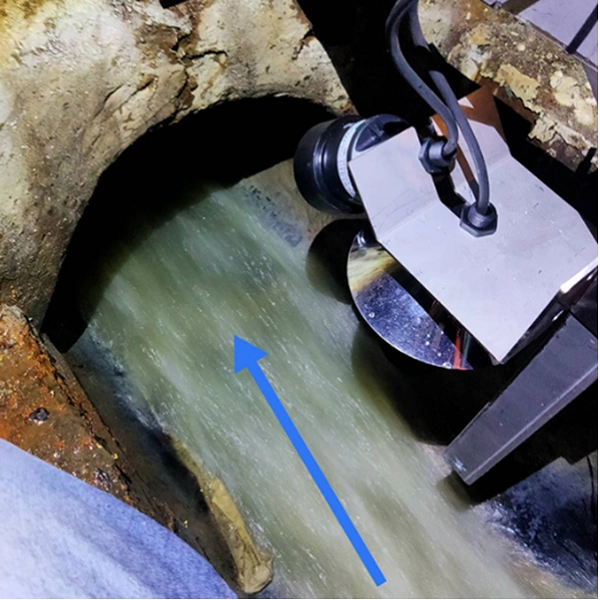

| Optimum Installation: | Install at an angle of 45° in line with the flow. More information is provided within the manual. |
| Max. Channel Width: | 1.5 m (4.92 ft) |
| Beam Width: | 20° inclusive |
FLOW SENSOR

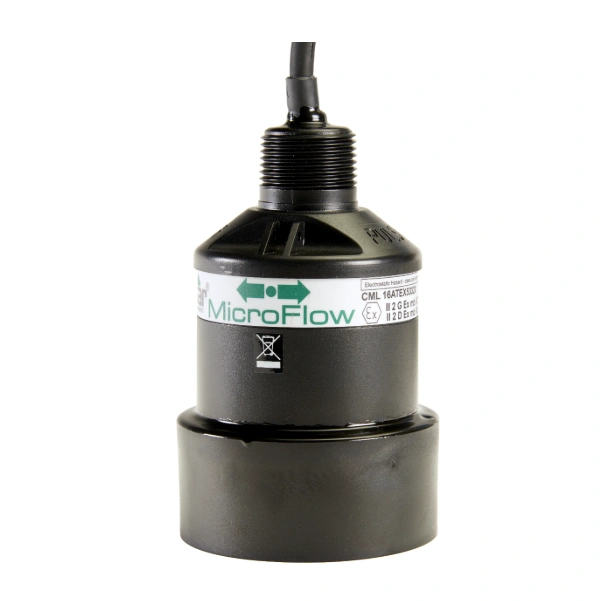

MicroFlow
Non-contacting Velocity Measurement

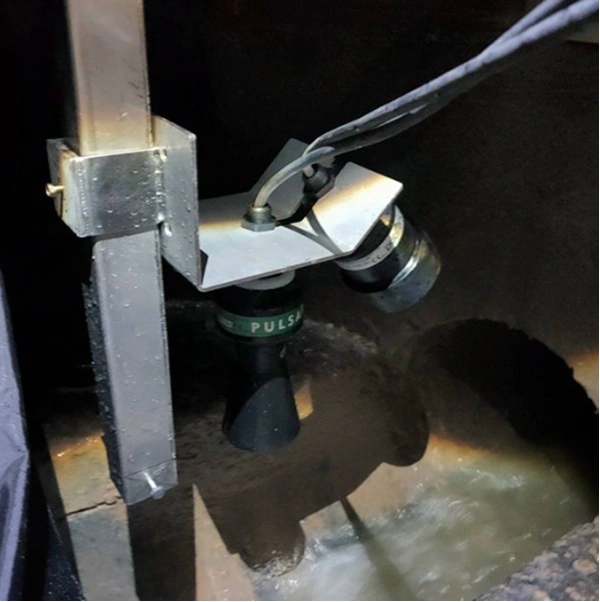

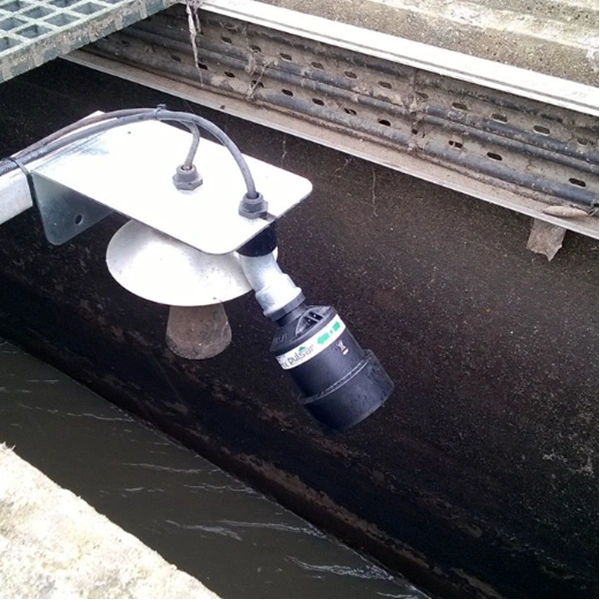

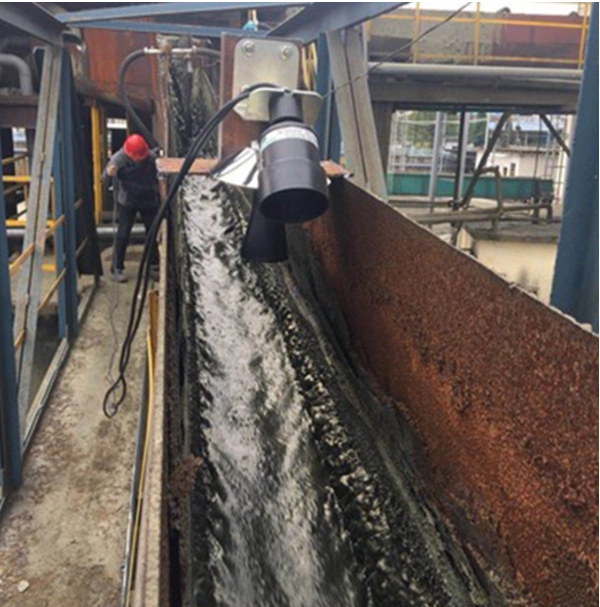

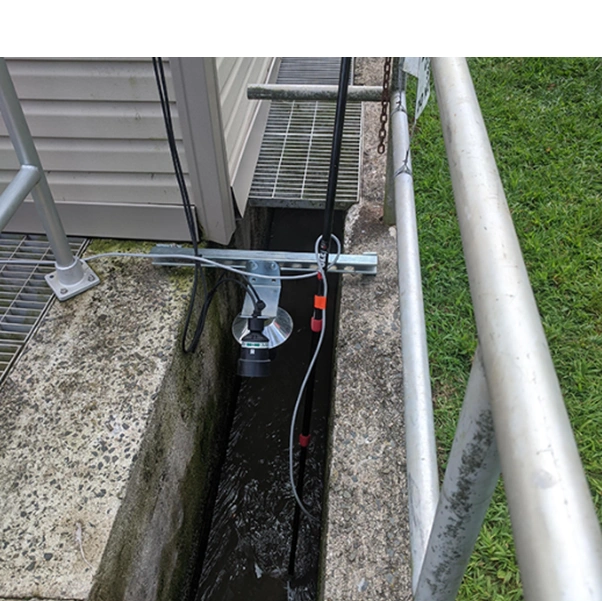

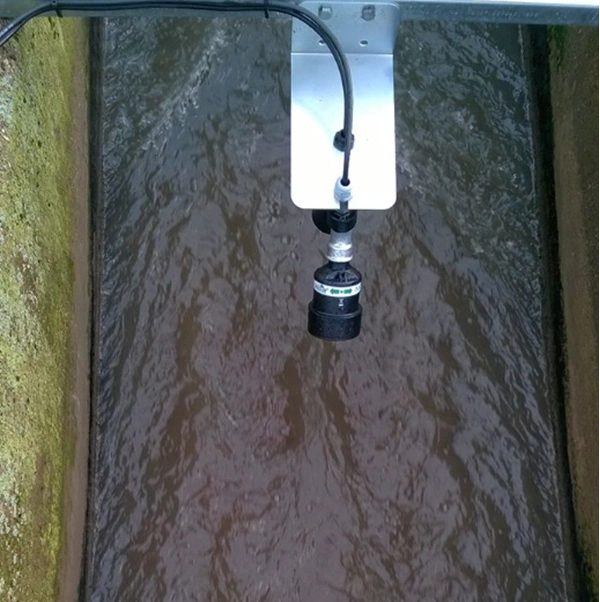

MicroFlow provides a non-contacting, velocity measurement solution for open channels. Use MicroFlow as a stand-alone device for simple velocity measurement or pair it with a dB Ultrasonic Transducer for a complete area-velocity system.
Area-velocity calculations using MicroFlow provide a cost-effective flow measurement solution compared to the installation of a Primary Measuring Device (PMD). Additionally, the hydraulics of a site can sometimes not allow for restriction within the channel, therefore it would be unsuitable for a PMD to be installed, the MicroFlow provides a viable solution.
