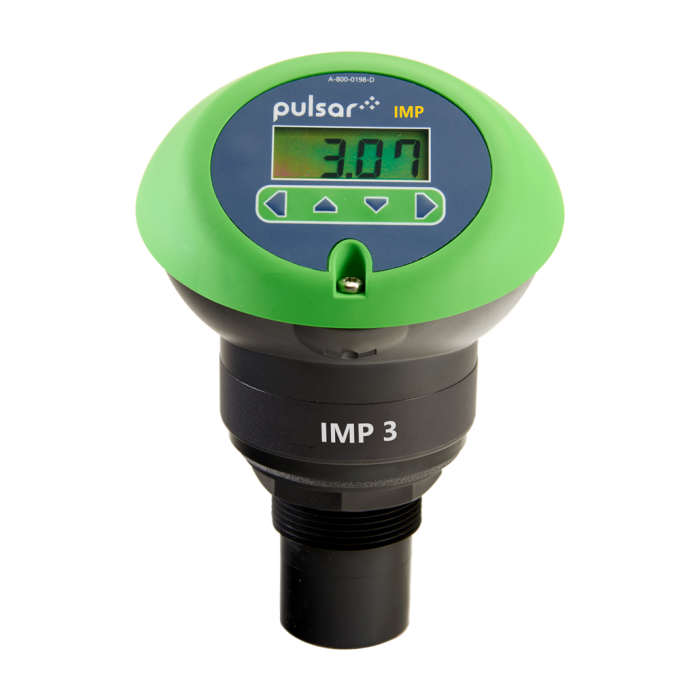

There are several measurement ranges available from 200 mm to 10 m (7.9 in to 32.8 ft) and each sensor can be wired for 2 or 3-wire operation. All IMP options feature an LCD display and digital temperature measurement and compensation. Combine the IMP level sensors with PC Suite 4.0 and users will be able to download, analyze, and store echo profiles, set up the sensor parameters, install new firmware, and add a flow curve to configure level to flow linearization.
- Compact, self-contained level measurement
- Calibrate without compromising the IP67 rating
- Simple menu led setup
- High power and narrow beam angles
| General Specifications | |
|---|---|
| Spec: | Description: |
| Dimensions | 186 mm (H) x 133 mm (D) (7.3 in (H) x 5.2 in (D)) |
| Cable Entry: | 2 off cable glands 4.5 mm to 10 mm (0.2 in to 0.4 in); Torque to 2 NM |
| Mounting: | IMP3 – 3 m (9.8 ft) version: 1.5 in BSP/NPT IMP 6 – 6 m (19.7 ft) version: 1.5 in BSP/NPT IMP10 – 10 m (32.8 ft) version: 2 in BSP/NPT Suits BSP & NPT, parallel and tapered |
| Weight | Nominal 1kg (2.2 lb) |
| Enclosure Protection | IP67 |
| Temperature (Process) | -4 0°C to +65 °C (-40 °F to +149 °F ) |
| Temperature (Ambient) | -40 °C to +80 °C (-40 °F to +176 °F) |
| Input Voltage Range | 11-30 V, 3.5-22mA |
| Accuracy | ±0.25% or 6 mm (0.2 in) whichever is greater |
| Resolution | ±0.1% or 2 mm (0.1 in) whichever is greater |
| 4-20mA Outputs | Resolution 5 μA; both active and passive outputs |
| Temperature Compensation | Via internal temperature sensor 0.5 °C (± 32.9 °F) accuracy. Level and volume conversion are installed allowing linearisation for tank shapes. |
| PC Interface | All parameters can be accessed and changed through PC Suite software. Echo traces may be viewed on-screen. |
