Basic type: 902454

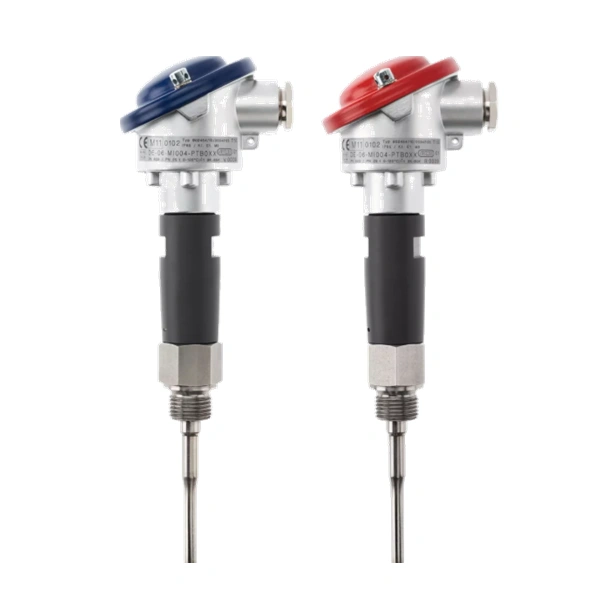

Screw-in RTD temperature probe for combined cold/heat meters with terminal head for direct mounting (type DL)
Combined cold/heat meter RTD temperature probes are used for temperature measurement in closed pipeline systems. Direct mounting without an additional thermowell is recommended to achieve optimum thermal coupling to the measurement medium in the heating system.
| General technical data | |
|---|---|
| Terminal head | Form B |
| Process connection | Thread G 1/2, stainless steel |
| Protection tube | Stainless steel |
| Temperature sensor | Pt100, Pt500, or Pt1000 |
| Minimum immersion depth | 25 mm |
| Insertion length | 85 to 280 mm |
| Protection type | IP65 |
| Option | Two-wire or four-wire circuit |
| Special features | Type examination certificate for heat meter MID and domestic approval for combined cold/heat meters as exchangeable temperature probes; fulfils the requirements of DIN EN 1434; AGFW FW 202, and FW 211; pairing and declaration of conformity according to the German Weights and Measures Act (MessEG) and MID; production certified according to module D (MID) (CE and metrology identification marking) |
