Basic type: 902428

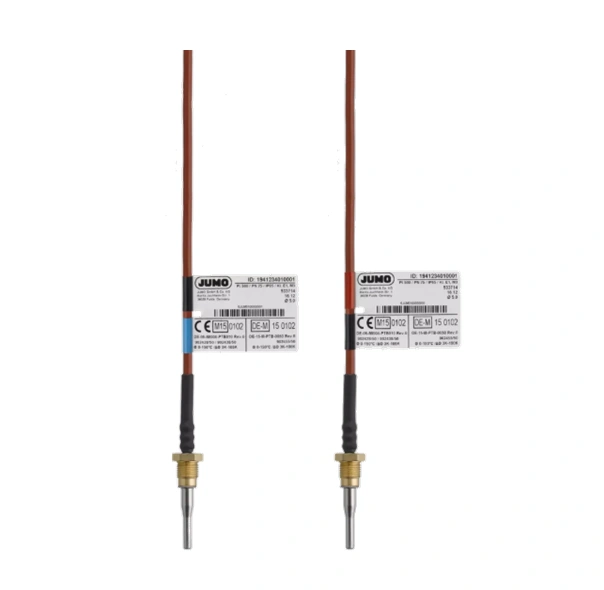

Screw-in RTD temperature probes for heat meters with connecting cable for direct mounting (type DS/DL)
RTD temperature probes for heat meters are used for temperature measurement in closed pipeline systems. Direct mounting without additional immersion sleeve is recommended to achieve optimum thermal coupling to the measurement medium in the heating system.
| General technical data | |
|---|---|
| Temperature | 0 to 180 °C |
| Connection | Ferrules |
| Connecting cable | PVC, PUR, TPE, silicone; unshielded or shielded |
| Process connection | Type DS: screw connection M10 × 1, brass; type DL: thread G 1/4, G 1/2 stainless steel |
| Protection tube | Stainless steel |
| Measuring insert | Pt100, Pt500, or Pt1000 |
| Option | Two-wire or four-wire circuit |
| Insertion length | Type DS: 25 to 60 mm; type DL: 60 to 280 mm |
| Protection type | IP65 |
| Special features | Direct mounting without additional immersion sleeve. Production certified according to module D (MID) (CE and metrology identification marking), pairing and declaration of conformity according to MID, type examination certificate for heat meters MID as replaceable temperature probes |
| Approvals | Fulfills the requirements of DIN EN 1434, AGFW FW 202, and FW 211 |
| Application options | Temperature measurement in closed pipeline systems |
