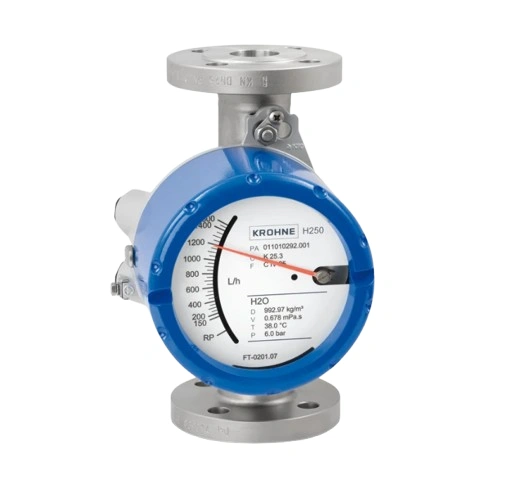

H250-RR Variable Area Flow Meter

Features

• Sturdy stainless steel measuring cone
• Operating temperature: -321 to 572°F
• Flow rates for liquids:
  • Lower limit: 0.47 gph
  • Upper limit: 26,418 gph
• Flow rates for gases:
  • Lower limit: 0.002 scfm
  • Upper limit: 1736 scfm
• Measuring range: 10:1
• Optional: 100:1 turndown
• Accuracy: ±1.6 %
• High application security, even with extremely small flows
• Excellent long-term stability
• Wide range of flange, threaded, clamp process connections
• Resistant to extreme chemical, mechanical and thermal loads
• All components replaceable
• Heating jacket available for the measuring section
