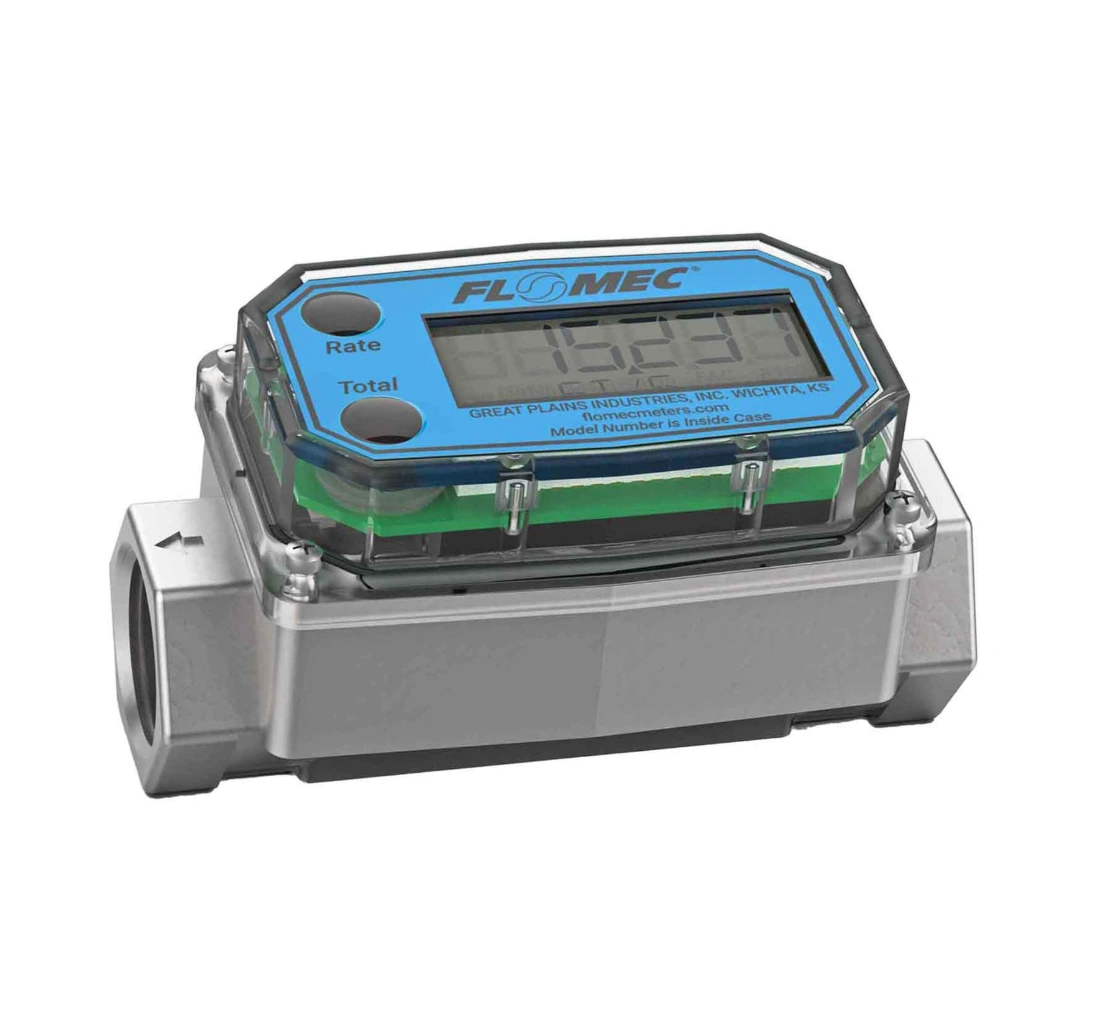

- Meter Body Size: 3/4″
- Local/Remote Display: Local
- Display Type: Digital LCD
- Factory Calibrated For: Water like fluids
- Flow Meter Type: G2 Series – INDUSTRIAL GRADE METER
- Std Calibration Reports Included: Yes
- Warranty Period: 1 Year
- Product Type: Rate & Totals
- Benefits & Features: Pressure Rated to 1500 PSI; Excellent Chemical Compatibility; Accurate; Durable; 2-Year Battery Powered; 6 Digit Display – Floating Decimal; Rate of Flow; Batch & Cumulative Totals; Factory Calibrated and Field Calibratable; Add-On Output Options; FM Approved Class I, Div. I; Replaceable Internal Meter Body Parts; Choice of Gallons or Liters; Custom Programmable Display (including UOM)
- Max Pressure Drop (at Max Flow in test conditions): 5.2 PSI
- Accuracy (% of Reading) Factory Calibrated with Computer: ± 1.0%
- Accuracy (% of Reading) Factory Calibrated Body Only: ± 1.5%
- Repeatability (based on test conditions): ± 0.1%
- Recommended Strainer Size: 120 Mesh (125 Microns)
- Max. Particle Size: .005″ / .127 mm
- Operating Temp Without Local Computer or With Remote Computer: -40 to 250°F (-40 to 121°C) [Opt’l]
- Extended Flow Range: 20 – 30 GPM (75.7 – 113.6 LPM)<br>[Accuracy of the extended flow range declines and is not guaranteed]<br>Overranging damages meter and voids warranty
- Maximum Viscosity: 100 cps<br>[For viscous fluids like oils, the temperature must not fluctuate more than ±5°F to avoid accuracy fluctuations]
- Applications (always check Chemical Compatibility Guide): Water, Chemicals, Fuel Products
- Not Suitable For Applications: DI Water; Oils, especially those heavier than 10W (100cps), Fluctuating viscosities**
- Minimum Straight Pipe Dia.s: 7.5″ Upstream / 3.75″ Downstream
- Desired Straight Pipe Dia.s: 14″ Upstream / 7.5″ Downstream
- Application Notes: Unidirectional but Display can be rotated 180°, Can mount Horizontally or Vertically, Can use for Gravity Feeds, Line should be kept full (no air) for proper accuracy
- Piping Notes: If cavitation affects accuracy, try a flow control valve downstream of meter
