GENERAL SPECIFICATION
Technical Data

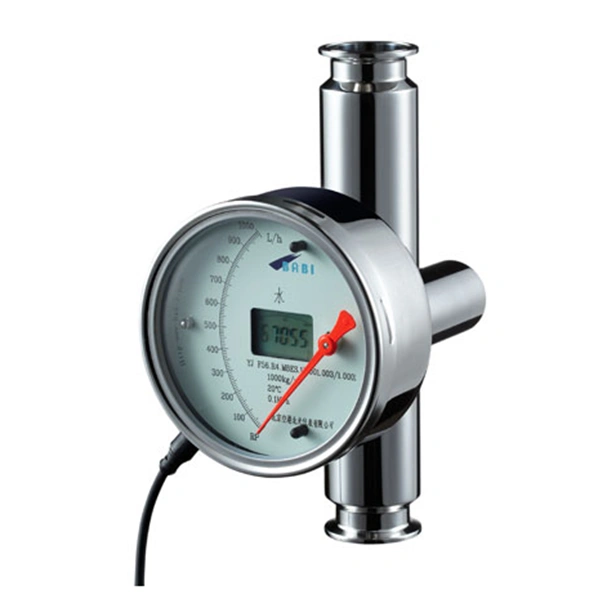

| Type | F56（Food Industrial Level） | ||||
| Fluid type | Liquid, gas, steam | ||||
| Flow range（Convert to standard medium, 100% values） | Water：20℃ | (10 to 100000) L/h，Special order according to user requirements | |||
| Air：0.1013MPa，20℃ | (0.7 to 3000)Nm3/h，Special order according to user requirements | ||||
| Rangeability | 10：1 | ||||
|
Indication accuracy |
Local type |
Mechanical pointer indication | 1.5，2.5，4.0(F.S. as standart) | ||
| Digital display (battery powered, service life 1 years) | 1.5，2.5，4.0(F.S. as standart) | ||||
| Transmitter: simultaneous pointer indication and digital display | 1.5，2.5，4.0(F.S. as standart) | ||||
|
Fluid temperature |
Local type |
Mechanical pointer indication | ‐80℃ to +200℃（PTFE:0 to 80℃） | ||
| Digital display (battery powered, service life 1 years) | ‐40℃ to +120℃（PTFE:0 to 80℃） High temperature type 200℃ | ||||
| Transmitter: simultaneous pointer indication and digital display | ‐40℃ to +120℃（PTFE:0 to 80℃） High temperature type 200℃ | ||||
|
Ambient temperature |
Local type |
Mechanical pointer indication | ‐40℃ to +120℃ | ||
| Digital display (battery powered, service life 1 years) |
‐20℃ to +60℃ |
||||
| Transmitter: simultaneous pointer indication and digital display |
‐20℃ to +60℃ |
||||
| Fluid viscosity | DN15：10 to 25(l/h) η<1 mPa.s, >25(l/h) η<5 mPa.s; DN25：η<20 mPa.s; DN50 to 250：η<30 mPa.s | ||||
|
Fluid pressure |
DN15～DN50 | 4.0MPa | |||
| DN80～DN250 | 1.6MPa | ||||
| Process connection | Sanitary clamp (standard: DIN32676; ISO2852); sanitary union(standard: DIN11851; SMS1145) | ||||
| Electrical connection | M12 electrical connector | ||||
| Installation(Flow direction) | Vertical flow direction (bottom→top，top→bottom); Horizontal flow direction (lift→right，right→lift) | ||||
| Installation conditions | Inlet section ≥ 5 × DN, outlet section ≥ 3 × DN | ||||
| Protection category | IP65(Other orders need to be explained separately） | ||||
|
Ex‐mark |
Ex ia II C T4 to T6 Ga | ||||
| Ex d II C T6 Gb | |||||
| Intrinsically safe data | Ui=28V Ii=93mA Pi= 0.65W Ci≤ 5nF Li =0mH | ||||
| Safe gate data | Uo≤ 28V Io≤ 93mA Po≤ 0.65W Co≥ Ci+Cc Lo≥ Li+Lc | ||||
| Explosion proof certificate number | CE16.1206X | ||||
