F56-P10A VA Flowmeter
,

F56/P10A

Variable Flow Meter

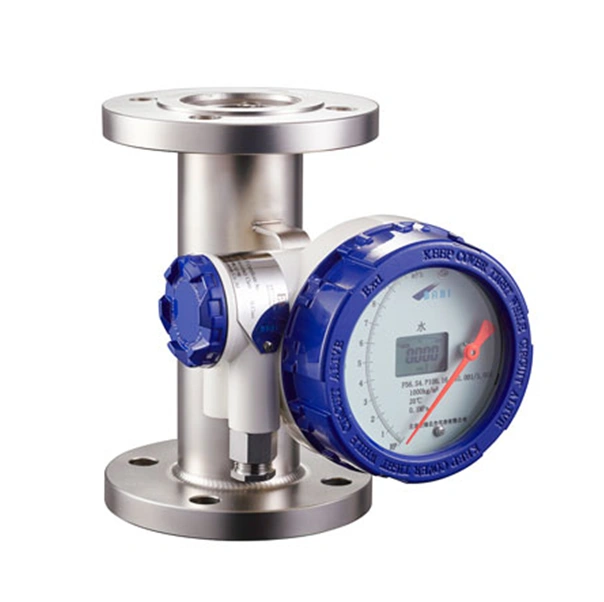

Transmitter with Local LCD Indicator is designed on the basis of PCB multifunction flow, the signal measured is converted to flow value by magnetic coupling. The value is both shown by the pointer on the
scale plate and on LCD.

  • Made of stainless steel stainless steel by stamping forming.
  • Local instantaneous flow indicated by mechanical pointer.
  • Instantaneous flow, accumulated flow and percentile flow indicated on LCD.
  • Two wire system 4-20mA, Hart Protocol Digital communication.
  • Parameter setting by full function key, HART communicator and PC.
  • IS (intrinsically safe)/ Flameproof function.
  • Electrical connection part connected by M12 plug-and-play aviation plug.

P10 Indicator:

  • Modularization design Exi, Exd explosion protection housing
  • 2-wire electrical signal output (4-20)mA/HART
  • Optional limit alarm

PRODUCT ATTACHMENT

BROCHURE

ติดต่อขอรายละเอียดหรือสนใจสินค้า

  • Line : @intech2000
  • Email : intech@intech2000.com
  • Tel : 02-440-1853
Categories: , Brand:

GENERAL SPECIFICATION

Technical Data

Type F56
Medium Liquids, gases, vapors
Rang(conversion to 100% value of reference fluid ) Water : 20℃ (10-300000)L/h , Special order on request:
Air : 0.1013MPa, 20℃ (0.7-3000)Nm3/h, Special order on request:
The turn-down ratio 10 : 1
Accuracy class Mechanical indicator 1.0, 1.5, 2.0, 2.5
Mechanical indicator with LCD（battery powered, service life: 2 years） 1.0, 1.5, 2.0, 2.5
Mechanical indicator with two-wire signal output (4-20)mA/hart communication protocol 1.0, 1.5, 2.0, 2.5
Medium temperature Machinery indicator with LCD（battery powered, service life: 2 years） -80℃~+300℃ (PTFE:0~80℃)

High temperature 400℃
Mechanical indicator（battery powered, service life : 2 years） -40℃~+120℃ (PTFE:0~80℃)

High temperature 400℃
Mechanical indicator with two-wire signal output (4-20)mA/hart communication protocol -40℃~+120℃ (PTFE:0~80℃)

High temperature 400℃
Ambient temperature Mechanical indicator -40℃~+120℃
Mechanical indicator with LCD（battery powered, service life: 2 years） -20℃~+60℃
Mechanical indicator with two-wire signal output (4-20)mA/hart communication -20℃~+60℃
Viscosity of fluid DN15: F15.00~F15.03  η<5 mPa.s,  F15.04~15.30  η<30 mPa.s;  DN25: η<250 mPa.s;  DN50~250: η<300 mPa.s
Nominal pressure DN15~DN50 4.0MPa（Max DN15: 42MPa, DN25: 42MPa, DN50: 32MPa）
DN80~DN250 1.6MPa（Max DN80: 10MPa, DN100: 6.4MPa, DN125: 4.0MPa，

DN150: 4.0MPa, DN200: 2.5MPa, DN250: 2.5Mpa）
Process connection Flange connection, Standard: DIN2501, ANSI, JIS（select Chinese standard freely, priority select DIN）
Hygiene clamp, screw joint are selected in the order
Electrical connection M20×1.5     1/2″G     1/2″NPT      3/4″G     3/4″NPT
Installation Vertical installataion（bottom in up out and up in bottom out, Horizontal installataion（left in right out and right in left out）

bottom in side out, side in side out
Straight unimpeded inlet run ≥ 5D
Straight unimpeded outlet run ≥ 250 mm
Degree of protection IP67(Others need specify in the order)
Ex marking EEx ia II CT5
EEx d II CT6
Ex electrical data Ui = 28V     Ii = 93mA     Pi = 0.65W    Ci ≤ 5nF     Li =0mH
Safety barrier data Uo ≤ 28V     Io ≤ 93mA    Po ≤ 0.65W    Co ≥ Ci+Cc  Lo ≥ Li+Lc
Carried Standard JB/T  6844-93
