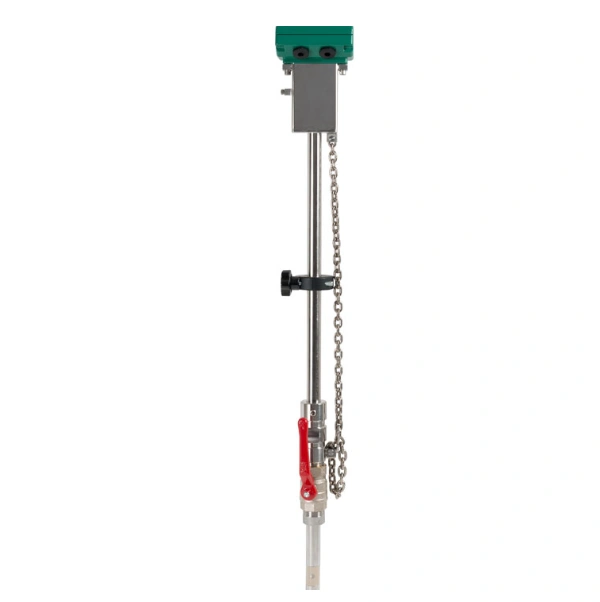

Electromagnetic insertion sensor MS3810
,

Electromagnetic insertion sensor MS3810

  • The MS3810 insertion sensor ISOMAG is used for mounting on pressure lines with diameters from 80 to 8000 mm and it is ideal for temporary measurement campaigns, line monitoring and leak detection.
  • Wide choice of sensor lengths for installation in pipes of different diameters with the possibility of integrating pressure measurement.

Product Attachments

BROCHURE | DATASHEET

Categories: , Brand:

The electromagnetic insertion sensor MS3810, flow meters, energy meters, ultrasonic flowmeters, and industrial automation systems have been ISOIL Industria‘s passion and continuous research since 1958, and for any information or advice, please do not hesitate to contact our specialists.

Technical Specifications

  • Nominal pressure: PN 25
    Process connections: Threaded 1”
  • Ball valve for extraction under load
  • Liquid temperature: from 0 to 100 ° C
  • Coating material: PEEK
    Electrode material: AISI316L
  • Sensor material: 316 Stainless Steel
  • Accuracy: ± 2% of the value read
    (regardless of the coupled converter).
