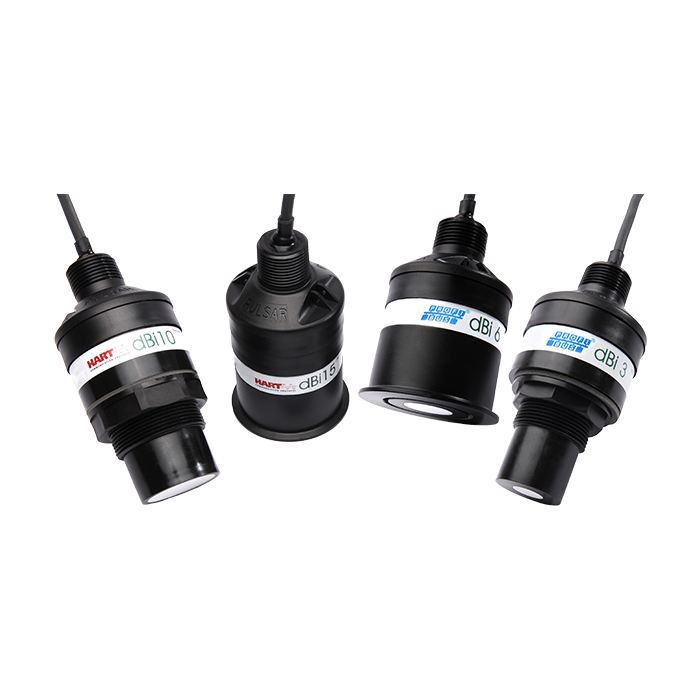

The dBi Profibus non-contacting level sensors are compatible with Profibus profile 3.0.2 and provide very high resolution to give exceptional accuracy and a rapid response time of 1 second! The sensors also benefit from Pulsar Measurement’s unique DATEM echo processing technology, so the level sensors are able to zone in on the true target and map out interferences. The transducers can be programmed with our PC Software or using PLC / HMI with Profibus Network.
- Self-contained
- Two-wire
- Solids or liquids applications
- Various Mounting options
- ATEX Approvals
- DATEM digital echo processing software
- Uses the standard programming tools on our dedicated PC system
| General Specifications | |
|---|---|
| Spec: | Description: |
| Housing Material | Valox 357 PBT (Polybutylene terephthalate) |
| Temperature Compensation | Internal temperature sensor, ±0.5 °C (±0.5 °F) |
| Transducer Cable Requirements | Twin screened. Integral cable length 5 m, 10 m, 20 m, and 30 m (16.4 ft, 32.8 ft, 65.6 ft, and 98.4 ft). |
| Operating Temperature | Process Temperature -40 °C to +80 °C (-40 °F to +176 °F) |
| Ingress Protection | IP68 to BS EN 60068-2-17:1995 and BS EN 60529 (Nema 6P available) |
| Power | Bus-powered, per IEC 61158-2; 20mA (general purpose or I.S. version) 20mA 18-24 V DC |
| Update Time | PA modem; Simatic PDM, EDDL, FDT/DTM on request. PC interface 2-wire loop powered from PC or laptop. No external power required. |
| Outputs | Profile 3.0.2, Class A with I&M functionality |
