| General Specifications | |
|---|---|
| Spec: | Description: |
| Sensor body material | Valox 357 U and syntactic foam face |
| Maximum separation | 500 m (1,640.4 ft) |
| Mounting connection | BSP or 1 in NPT |
| Enclosure protection | IP68/NEMA 6P |
| Operating Temperature | Standard: -40 °C to +90 °C (-40 °F to +194 °F) Hazardous Area: -40 °C to +75 °C (-40 °F to +167 °F) |
| CE Approval | 2014/30/EU – EMC & 2014/34/EU ATEX Directives. Standards applied: EN 60079-0:2012+A11:2013/ EN 60079-11:2012 / EN 60079-18:2009 / EN 60079-26:2007 / EN 61326-1:2013 |
| ATEX Approval | Standard ATEX EEx m II T6 or optional EEx ia IIC T6. FM/FMc approval. (dB50 not approved) |
| Intrinsic Safety | Optional |
| Accuracy | 0.25% or 6 mm (0.2 in) whichever is greater |
| Resolution | 0.01% or 2 mm (0.1 in) whichever is greater |
FLOW METER, FLOW SENSOR, ULTRASONIC FLOW METER
dB Ultrasonic Transducer
Non-contacting Ultrasonic Transducer

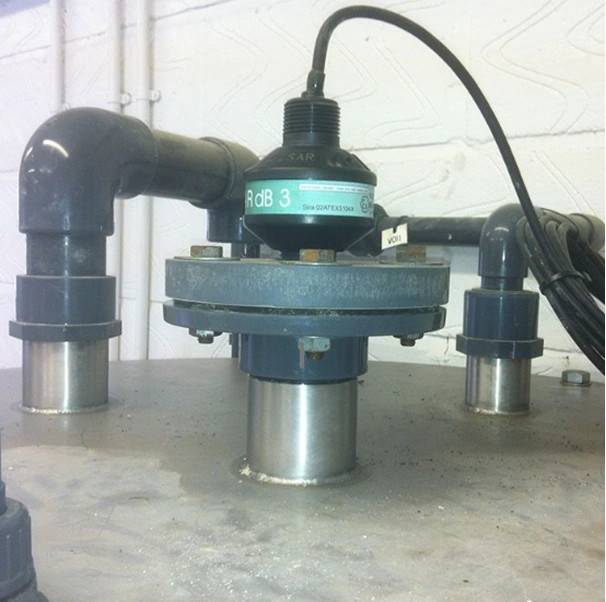

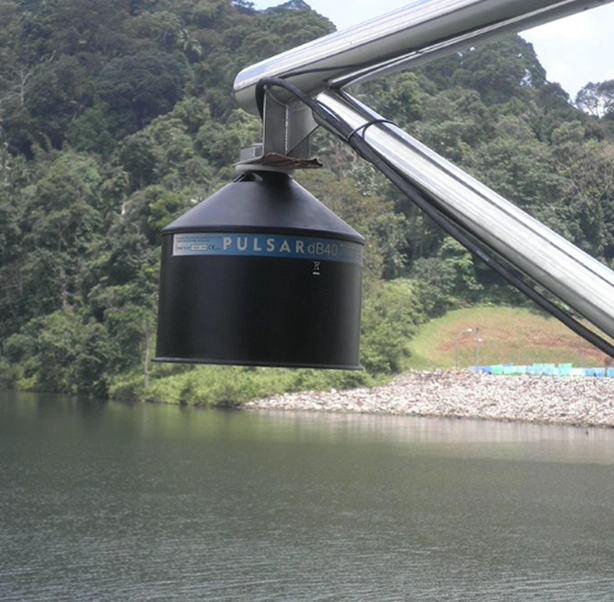

The dB Transducer series from Pulsar Measurement is a range of level sensors for wastewater and industrial environments. Ranging from 3 m (9.8 ft) to 40 m (131.2 ft) all of our ultrasonic level sensors provide a reliable level, volume, open channel flow, pump control, and differential level measurement for both liquid and solid applications.
