Basic type: 608425
For temperature control

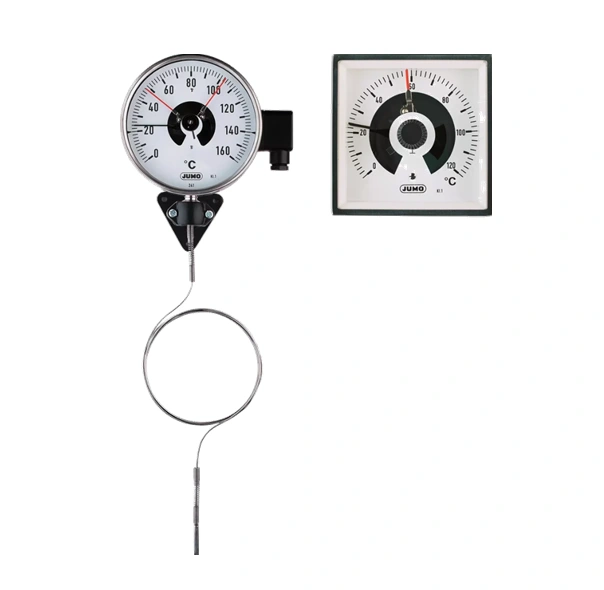

Contact dial thermometers are universally-applicable devices with actual value display for temperature measurement, control, and monitoring. The slow-action contact/magnetic snap contact closes or opens an electrical circuit depending on the movement direction at the set limit values.
- Temperature controller in flush-mounted housing or surface-mounted housing
- ambient temperature compensation
| General technical data | |
|---|---|
| Measuring range | -40 to +450 °C |
| Display range | -50 to +500 °C |
| Housing size | 100 mm, 160 mm, and front panel 96 × 96 mm |
| Accuracy class according to DIN EN 13190 | Class 1 |
| Features | Temperature controller in flush-mounted housing or surface-mounted housing; ambient temperature compensation |
| Areas of application | Process technology, oven engineering |
| Capillary/rigid thermowell | Rigid thermowell or capillary (up to 10 m) |
| Probe outlet | Vertical or horizontal |
- Process technology
- oven engineering
