B-IN-CONTROL

B-IN-CONTROL

,

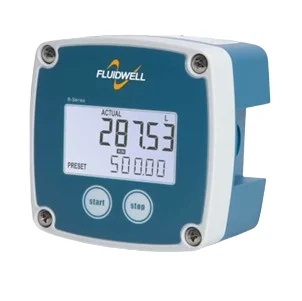

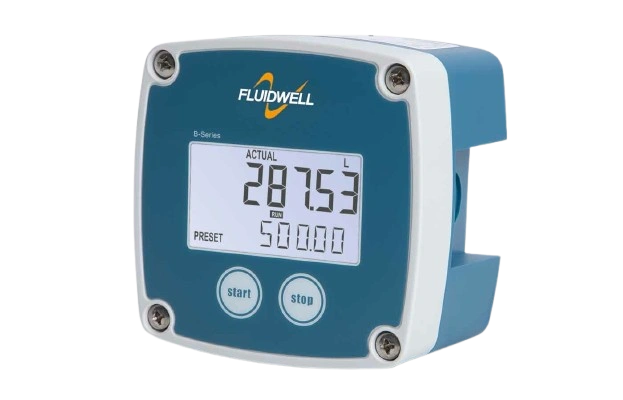

The B-In-Control is a basic batch controller with one- or two-stage control outputs, offering exactly what is required for many applications. The operator can easily enter a batch quantity or execute repeating batches. During the batch, the preset value is displayed as well as the batched (actual) quantity and the units of measurement. The automatic self-learning overrun correction ensures an accurate result after every batch.

Categories: , Brand:

Download Documents

📄Datasheet📄Manual
  • For basic batching, from small up to very large quantities. Just a simple single batch or repeating similar batches.
  • The B-Series is our most cost effective display but with all the benefits you may expect from a Fluidwell product: It’s durable, reliable and very easy to operate. Basic with a capital B!
  • Familiar easy operation with the Fluidwell “Know one, know them all” configuration structure, saving time, cost and aggravation.
  • Compact design.
  • Displays preset value and running batch value simultaneously, total and accumulated total.
  • Self-learning overrun correction.
  • Two control outputs, with one- or two-stage for accurate valve control.
  • Durable IP65 (Type 4X) field, wall or meter mount enclosure.
  • One 20mm (0.79″) and two 16mm(0.63″) knock-out hole cable entries.
  • “Know one, know them all” configuration structure.
  • Easy reading and programming with clear alphanumerical display.
  • Clear 12mm(0.5”) numeric digits and 7mm(0.3”) alphanumeric digits.
  • Bright LED backlight.
  • Auto backup of settings and running totals.
  • Lithium AA battery and 10 – 30V DC power supply.
  • Sensor supply: 8.2V DC.
  • Easy configurable via PC with free downloadable remote configuration tool and special communication cable (ACE02).
  • Various accessories are available for this product.
  • Signal Inputs
    • Flowmeter Inputs
      • Basic types of flowmeter signals: Namur, Reed-switch, NPN, PNP and Sine wave (coil).
  • Signal Outputs
    • Pulse outputs
      • None.
    • Alarm outputs
      • None.
    • Analog outputs
      • None.
    • Control outputs
      • Function: Two control outputs, with 1- or 2-stage for accurate valve control.
      • Type: Two passive transistor output (NPN) – not isolated.
  • Supply
    • Power Supply
      • A single 3,6V lithium AA battery.
      • 10 – 30V DC.
    • Sensor Supply
      • 8.2V DC.
  • For basic batching, from small up to very large quantities. Just a simple single batch or repeating similar batches.
  • The B-series offers you an economical solution for common industrial applications. Nothing more, nothing less.
