| Spec name: | Description: |
| Channel Types | Round pipe, rectangular, trapezoid, egg, or custom shapes |
| Electronics Enclosure | NEMA4X (IP 66) polycarbonate with clear, shatterproof cover |
| Accuracy | Level: ±0.25% of reading or ±0.08 in, whichever is greater. Repeatability & Linearity 0.1%. Velocity: ±2% of reading or ±0.012 m/s (0.04 ft/s), whichever is greater. Requires solids or bubbles minimum size of 100 microns, minimum concentration 75 ppm. Repeatability & Linearity 0.5% |
| Display | White, back-lit matrix – displays flow rate, totalizer, relay states, operating mode, and calibration menu |
| Programming | Built-in 5-key calibrator with English, French, or Spanish language selection |
| Power Input | 100-240 V AC 50/60 Hz, 10 VA maximum. Optional: 9-32 V DC, 10 W maximum |
| Outputs | 3 Isolated 4-20 mA, 1000 ohm, (Flow, Level, and Velocity) or 0-5 V DC by menu selection |
| Control Relays | 2 Relays, form ‘C’ dry contacts rated 5 amp SPDT; programmable for flow proportional pulse (sampler/totalizer), flow, and/or level alarm |
| Data Logging | Programmable 26 million point data capacity, time and date stamped plus formatted flow reports including Total, Average, Minimum, Maximum, and times of occurrence. Includes USB output to Flash Drives and Windows software |
| Operating Temperature (Electronics): | -20 °C to 60 °C (-5 °F to 140 °F) |
| Approximate Shipping Weight | 4.5 kg (10 lbs) |
FLOW METER, FLOW TRANSMITTER, ULTRASONIC FLOW METER

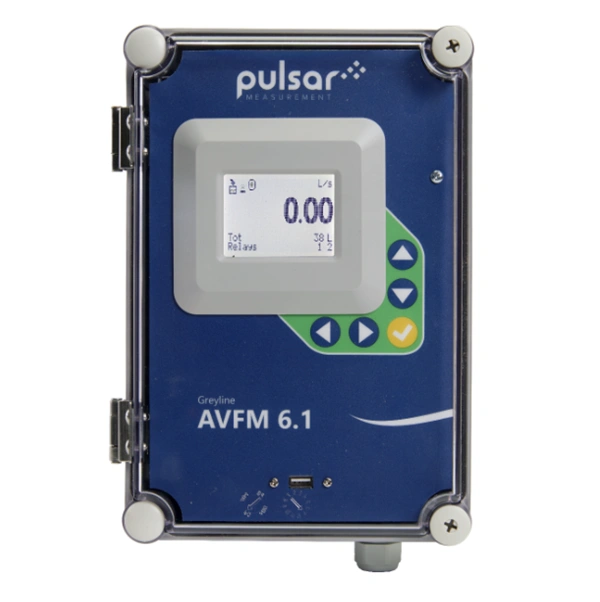

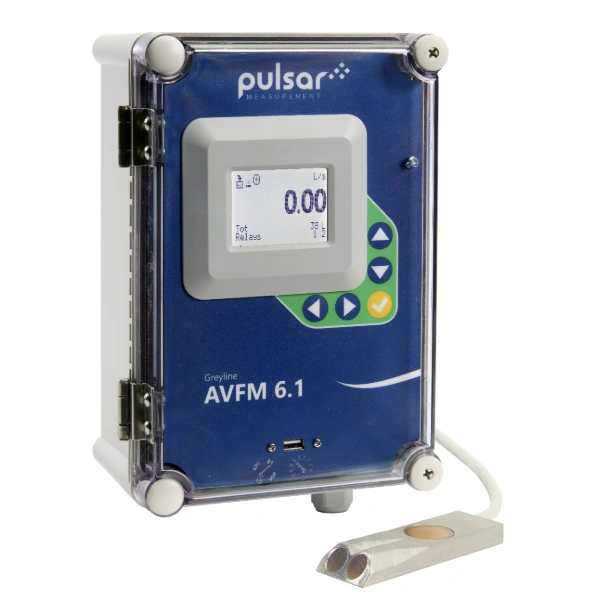

AVFM6.1 – Area Velocity Flow Meter
The Area Velocity Flow Measurement method is the most common method of all flow measurements. The AVFM 6.1 Area Velocity Flow Meter uses a submersible ultrasonic sensor measuring both the level and velocity of flowing liquid to calculate flow measurement in an open channel or pipe. The sensors are mounted either inside a pipe or at the bottom of a channel, and the sensor is built to resist fouling, corrosion, and abrasion. The AVFM 6.1 Area Velocity Flow Meter can be configured with the standard submerged velocity-level sensor or with submerged velocity in combination with a separate non-contacting ultrasonic level sensor, which is suitable for highly aerated fluids or those with a high concentration of suspended solids.
