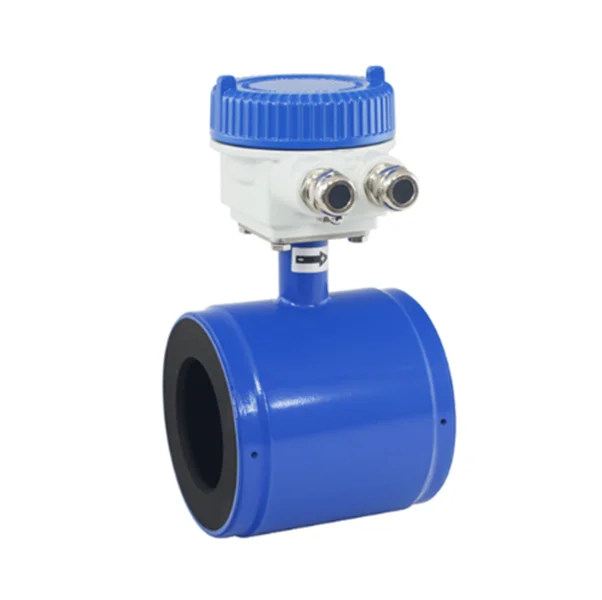

AMF500 Series Electromagnetic Flow Meter
,

AMF500 Series

Electromagnetic Flow Meter

The AMF500 Series is a wafer-type electromagnetic flowmeter ideal for conductive liquids. It comes in sizes from 50 to 200 mm.
AMF500 is widely used for tap water, waste water, food & beverage, pulp & paper, and many other industrial fluids.
AMF500 Series electromagnetic flowmeter can be used in a compact or remote model with AMC Series converter of the electromagnetic
flowmeter.

FEATURES

  • Light and compact version
  • Flow Velocity range: 0-12 m/s, precise in low flow applications
  • It comes in any fange such as ANSI, DIN, JIS etc.
  • Excellent for high pressure application
  • Protection class: IP68 available; sensor submersible
  • Available in PTFE and Polyurethane liner
  • High accuracy of +/-0.4% value of reading (or +/-0.2% value of reading)
  • With Forward / Reverse flowrate measurement function
  • It has an electrode cleaning function

PRODUCT ATTACHMENTS

DATASHEET

ติดต่อขอรายละเอียดหรือสนใจสินค้า

  • Line : @intech2000
  • Email : intech@intech2000.com
  • Tel : 02-440-1853
Categories: , Brand:

GENERAL SPECIFICATIONS

Size : 50, 65, 80, 100, 125, 150, 200 mm
Measuring Range : Velocity 0-0.25 m/s Min.
0-12 m/s Max.
Material
Measuring Tube : Stainless Steel 304
Coil Housing : Carbon Steel (Standard)
: Stainless Steel 304 (Option)
: Stainless Steel 316 (Option)
Liner : PTFE, Polyurethane
Protection Class : Junction box IP67, Body IP68
: IP68 (Submersible)
Conductivity : More than 5 μS/cm
Electrode & Grounding : Stainless Steel 316L
: Hastelloy B
: Hastelloy C
: Titanium
: Tantalum
: Tungsten Carbide
: Platinum
Cable Entry : Standard: M20  Option: 1/2″ NPTF
Ambient Temperature : -25~60 °C
Process Connection : Wafer
Flange Type : JIS 10K / JIS 20K / JIS 40K
ANSI 150# / ANSI 300# / ANSI 600#
DIN PN10 / PN16 / PN25 / PN40
Grounding Resistance : Must be less than 10 Ω
Accuracy : +/-0.5% of reading (Velocity≥0.5 m/s)
: +/-0.2% of reading
(Suitable for AMC3200 / 3200E converter)
: +/-0.0025 m/s (Velocity<0.5 m/s)
Temperature : -20~70 °C (Polyurethane, PU)
: -40~120 °C (PTFE 2″-8″)
: -40~150 °C (PTFE 2″-6″)
Standard Pressure : 40 kgf/cm2 (DN50-DN80)
: 16 kgf/cm2 (DN100-DN150)
: 10 kgf/cm2 (DN200)
Explosion Proof : Ex d ia [ia] q llC T6
(with AMC3200, AMC3200DF only)
