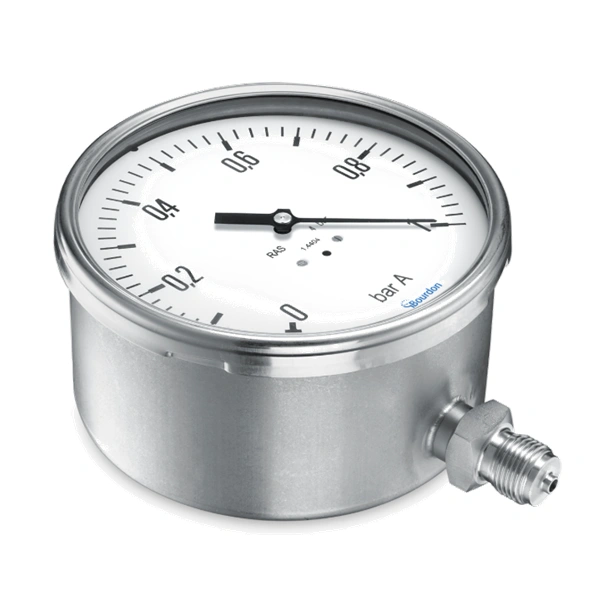

General Specifications
Housing
Protection rating (EN60529) : IP65
Dial : White, aluminium
Pointer : Black, aluminium
Safety according to EN 837-1 : S1, Pressure gauge with blow-out device
Window material : Instrument glass
Window gasket : Elastomer
Movement material : Stainless steel
Nominal size : 150 mm
Case material : Stainless steel 1.4301 / AISI 304
Bezel ring material : Stainless steel 1.4301 / AISI 304
Temperature
Ambient temperature : -20°C … +70°C
Storage temperature : -40°C … +70°C
Media temperature : -40°C … +200°C (not filled)
Wetted parts
Process connection : G1/2″, 1/2″ NPT
Process connection material : Stainless steel 1.4404 / AISI 316L
Bellow : Stainless steel 1.4404 / AISI 316L, 1 bellow process connected, 1 bellow evacuated
Performance
Accuracy : ± 2 % for standard ranges
Overpressure : Selectable, max. 25 bar
Type of pressure : Absolute
Min. measuring range : 0 … 0.1 bar
Max. measuring range : 0 … 16 bar
Weight
Gauge : 2500 g filled, 1600 g unfilled
