- Meter Body Size: 1″
- Body Type: 3-A Approved
- Factory Calibrated For: Water like fluids

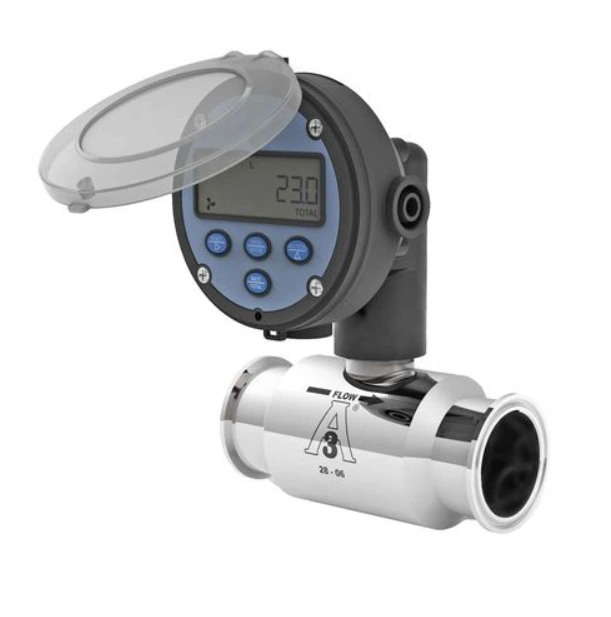

- Flow Meter Type: GSCPS Series – PRECISON METER – 3-A APPROVED BODY
- Std Calibration Reports Included: Yes
- Warranty Period: 1 Year
- Local/Remote Display: Local
- Display Type: Digital LCD
- Product Type: Rate & Totals, 4-20mA & Pulse Output
- Benefits & Features: The body meets strict 3-A Sanitary Standards using the new “Third Party Verification” (TPV) program; Internals are machined or polished to meet 3-A self-draining and cleaning requirements (Ra32); CIP, SIP, COP; High Accuracy: ± 0.5% (Linearity); Field Serviceable; 6 Digit Display – Floating Decimal; Rate of Flow; Batch & Cumulative Totals; Factory Calibrated and Field Calibratable; Choice of Gall
- Max Pressure Drop (at Max Flow in test conditions): 38 PSI
- Accuracy (% of Reading) Factory Calibrated with Computer: ± 0.5%
- Repeatability (based on test conditions): ± 0.1%
- Recommended Strainer Size: 40 Mesh (420 Microns)
- Max. Particle Size: .017″ / .420 mm
- Maximum Viscosity: 100 cps<br>[For viscous fluids like oils, the temperature must not fluctuate more than ±5°F to avoid accuracy fluctuations]
- Operating Temp Without Local Computer or With Remote Computer: -100 to 225°F (-74 to 107°C) [Opt’l]
- Applications (always check Chemical Compatibility Guide): 3A Approved Food & Beverage, Beer, Wine, Dairy
- Piping Notes: If pump, valve, etc. is upstream, need min. 20″ Upstream
- Minimum Straight Pipe Dia.s: 10″ Upstream / 5″ Downstream
- Application Notes: See page 5 in the manual for 3-A Recommended Practices, Unidirectional, Line must be full (no air) for proper accuracy
