G2S-TRI-CLAMP 316SS

G2S-TRI-CLAMP 316SS

G2S-TRI-CLAMP 316SS

Showing all 5 results

  • G2S05TQ9GMA (3/4″)
    FLOMEC
    Read more
    Flow Measurement

    G2S05TQ9GMA (3/4″)

    3/4″ (1/2″ Meter Body Size) Tri-Clamp 316SS
    Rate & Totals G2 Series – INDUSTRIAL GRADE METER
    Main Specifications
    Connection Type: Tri-Clamp
    Flow Range: 1 – 10 GPM (3.8 – 37.9 LPM)
    Pressure Rating: 150 PSI (10.2 Bar)
    Connection Size: 3/4″ (1/2″ Meter Body Size)
    Operating Temp With Local Computer:
    0 to 140°F (-18 to 60°C) for SAFE AREA (Non-FM Approved)
    0 to 129°F (-18 to 54°C) for INTRINSICALLY SAFE (FM Approved)
    Read more
  • G2S07TQ9GMA 1″
    FLOMEC
    Read more
    Flow Measurement

    G2S07TQ9GMA 1″

    1″ (3/4″ Meter Body Size) Tri-Clamp 316SS
    Rate & Totals G2 Series – INDUSTRIAL GRADE METER
    Main Specifications
    Connection Type: Tri-Clamp
    Flow Range: 2 – 20 GPM (7.6 – 75.7 LPM)
    Pressure Rating: 150 PSI (10.2 Bar)
    Connection Size: 1″ (3/4″ Meter Body Size)
    Operating Temp With Local Computer:
    0 to 140°F (-18 to 60°C) for SAFE AREA (Non-FM Approved)
    0 to 129°F (-18 to 54°C) for INTRINSICALLY SAFE (FM Approved)
    Read more
  • G2S10TQ9GMA (1-1/2″)
    FLOMEC
    Read more
    Flow Measurement

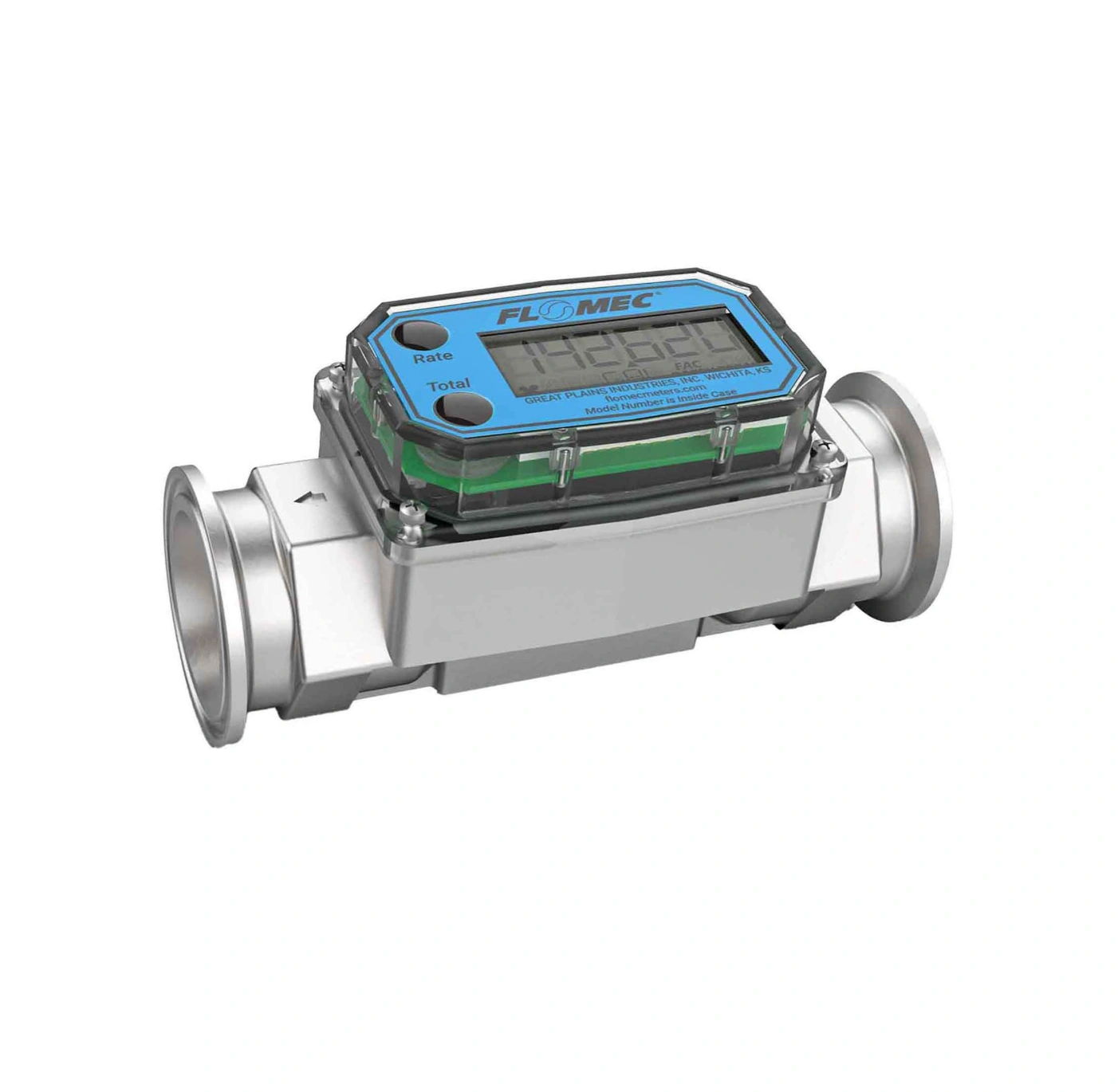

    G2S10TQ9GMA (1-1/2″)

    1-1/2″ (1″ Meter Body Size) Tri-Clamp 316SS
    Rate & Totals G2 Series – INDUSTRIAL GRADE METER
    Main Specifications
    Connection Type: Tri-Clamp
    Flow Range: 5 – 50 GPM (18.9 – 190 LPM)
    Pressure Rating: 150 PSI (10.2 Bar)
    Connection Size: 1-1/2″ (1″ Meter Body Size)
    Operating Temp With Local Computer:
    0 to 140°F (-18 to 60°C) for SAFE AREA (Non-FM Approved)
    0 to 129°F (-18 to 54°C) for INTRINSICALLY SAFE (FM Approved)
    Read more
  • G2S15TQ9GMB (2″)
    FLOMEC
    Read more
    Flow Measurement

    G2S15TQ9GMB (2″)

    2″ (1-1/2″ Meter Body Size) Tri-Clamp 316SS
    Rate & Totals G2 Series – INDUSTRIAL GRADE METER
    Main Specifications
    Connection Type: Tri-Clamp
    Flow Range: 10 – 100 GPM (38.0 – 380 LPM)
    Pressure Rating: 150 PSI (10.2 Bar)
    Connection Size: 2″ (1-1/2″ Meter Body Size)
    Operating Temp With Local Computer:
    0 to 140°F (-18 to 60°C) for SAFE AREA (Non-FM Approved)
    0 to 129°F (-18 to 54°C) for INTRINSICALLY SAFE (FM Approved)
    Read more
  • G2S20TQ9GMB (2-1/2″)
    FLOMEC
    Read more
    Flow Measurement

    G2S20TQ9GMB (2-1/2″)

    2-1/2″ (2″ Meter Body Size) Tri-Clamp 316SS
    Rate & Totals G2 Series – INDUSTRIAL GRADE METER
    Main Specifications
    Connection Type: Tri-Clamp
    Flow Range: 20 – 200 GPM (76 – 760 LPM)
    Pressure Rating: 150 PSI (10.2 Bar)
    Connection Size: 2-1/2″ (2″ Meter Body Size)
    Operating Temp With Local Computer:
    0 to 140°F (-18 to 60°C) for SAFE AREA (Non-FM Approved)
    0 to 129°F (-18 to 54°C) for INTRINSICALLY SAFE (FM Approved)
    Read more
